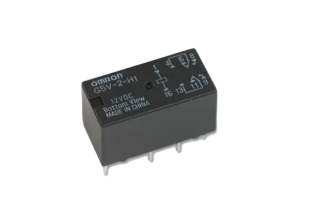

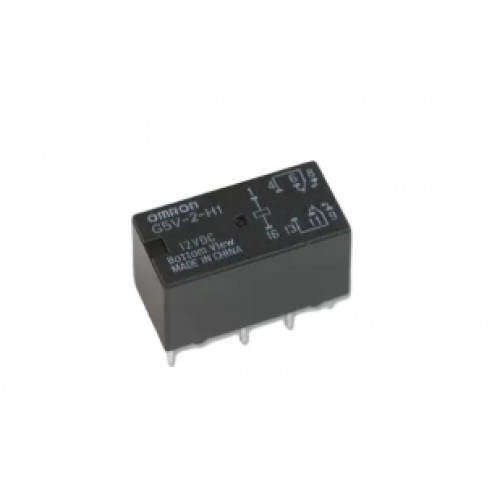

Omron G5V-2-H1 12 VDC High-Sensitivity DPDT Signal Relay

  • Stock: 50

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Omron
  • SKU: 11216 | DAJ172

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 140.36 (inc GST)
    Rs.118.95 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Omron G5V-2-H1 12 VDC High-Sensitivity DPDT Signal Relay

Omron G5V-2-H1 high-sensitivity DPDT signal relay with a 12 VDC coil, fully sealed enclosure and contact ratings of 0.5 A at 125 VAC or 1 A at 24 VDC.

The Omron G5V-2-H1 is a 12 VDC signal relay with two-pole DPDT contacts. It switches low-level signals in PCB designs, with contact loads rated at 0.5 A at 125 VAC or 1 A at 24 VDC.
Its high-sensitivity coil uses about 200 mW, which helps keep coil power use low. The fully sealed enclosure, bifurcated crossbar contacts and Ag + Au-alloy contact material define its design. Through-hole PCB terminals in a DIL layout suit compact board assembly. This DPDT relay can switch two signal paths, while its high-sensitivity design suits signal circuits.
The relay is used in telecommunication equipment and security equipment, where signal switching supports the operation of the wider system.
Find Omron relays and related parts at DNA for electronics builds and equipment repairs. Browse our Relay, Relay Socket & SSR range to match your switching needs. Check other Relay, Relay Socket & SSR that we have in stock
For Indian electronics buyers, DNA offers import support and retail or bulk supply. If you cannot find a part, contact us about Analog IC, Connectors, sensors, power supplies or development boards. Contact Us

Features of Omron G5V-2-H1 12 VDC High-Sensitivity DPDT Signal Relay

  • High-sensitivity relay design
  • Fully sealed enclosure
  • Bifurcated crossbar contacts for signal switching
  • Through-hole PCB terminals in a DIL layout
  • Ag + Au-alloy contact material
  • DPDT contacts switch two signal paths

Specifications of Omron G5V-2-H1 12 VDC High-Sensitivity DPDT Signal Relay

  • Rated coil voltage: 12 VDC
  • Coil rated current: 12.5 mA at 23°C, ±10%
  • Coil resistance: 960 Ω at 23°C, ±10%
  • Rated contact load: 0.5 A at 125 VAC or 1 A at 24 VDC
  • Maximum switching current: 1 A
  • Maximum switching voltage: 125 VAC or 125 VDC
  • Ambient operating temperature: -25°C to 70°C, no icing or condensation
  • Dimensions: 20.5 mm max. × 10.1 mm max. × 11.5 mm max., each with ±0.3 mm tolerance

Applications of Omron G5V-2-H1 12 VDC High-Sensitivity DPDT Signal Relay

  • Telecommunication equipment
  • Security equipment

Related Links for Omron G5V-2-H1 12 VDC High-Sensitivity DPDT Signal Relay

Package Includes

  • 1 X Omron G5V-2-H1 12 VDC High-Sensitivity DPDT Signal Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
