TC7662 Charge Pump DC-to-DC Converter

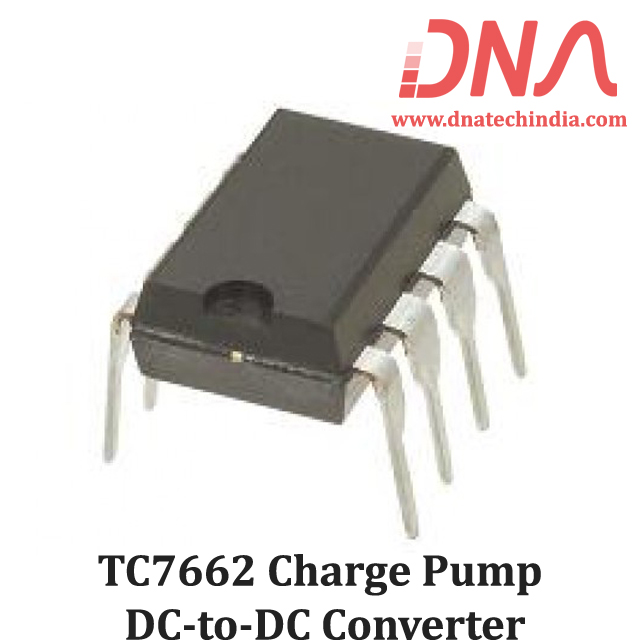

TC7662 Charge Pump DC-to-DC Converter Module

TC7662A Charge Pump Module converts +3V to +18V input to -3V to -18V output with 40mA current capability.

The TC7662 Charge Pump DC-to-DC Converter Module is an efficient solution for voltage conversion, transforming a +3V to +18V input into a -3V to -18V output. This module is designed for applications requiring a higher output current of up to 40mA while maintaining low EMI. With its simple design, it requires only two capacitors and eliminates the need for inductors, making it cost-effective and compact.

Incorporating an on-board oscillator at a nominal frequency of 12kHz, the TC7662 Charge Pump DC-to-DC Converter Module allows for lower supply current applications by connecting an external capacitor. Its pin compatibility with industry standards like ICL7662 and TC7660 makes it an ideal choice for a variety of electronic projects. This module is particularly useful for laptop computers, disk drives, and microcontroller-based systems.

Available in both 8-pin PDIP and CERDIP packages, the TC7662 Charge Pump DC-to-DC Converter Module caters to various temperature ranges, ensuring reliable performance in diverse environments. Explore how this module can enhance your electronic design with efficient voltage conversion.

At DNA, we offer high-quality DC to DC Converter Modules from respected manufacturers like TC7662. Explore our collection and discover the perfect solution for your voltage conversion needs. Check other "DC to DC Converter Modules" that we have in stock.

Are you searching for specific electronic components? At DNA, we can help you find what you need. We support both retail and bulk orders. If you need items like Power Supply, SMPS, or Sensors, reach out to us. We can also import parts not currently available. Contact Us.

Features of TC7662 Charge Pump DC-to-DC Converter Module

• Wide Operating Range 3V to 18V
• Increased Output Current (40mA)
• Pin Compatible with ICL7662/SI7661/TC7660/LTC1044
• No External Diodes Required
• Low Output Impedance @ IL = 20mA 40 Ohm Typ.
• CMOS Construction
• Available in 8-Pin PDIP and 8-Pin CERDIP Packages

Specification of TC7662 Charge Pump DC-to-DC Converter Module

• Input Voltage Range: 3V to 18V
• Output Current: 40mA
• Frequency: 12kHz
• Package Type: 8-Pin PDIP/CERDIP

Applications of TC7662 Charge Pump DC-to-DC Converter Module

• Laptop Computers
• Disk Drives
• Process Instrumentation
• uP-based Controllers

Related Links for TC7662 Charge Pump DC-to-DC Converter Module

• Other Products from DC to DC Converter Modules Category

Package Includes

• 1 X TC7662 Charge Pump DC-to-DC Converter Module
