Product Images are shown for illustrative purposes only and may differ from actual product.

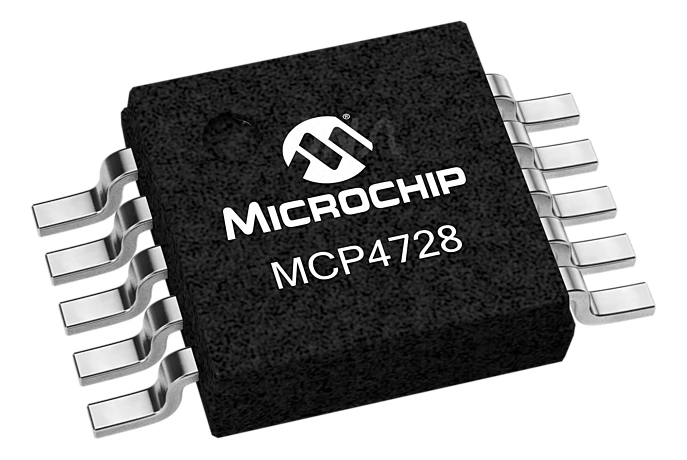

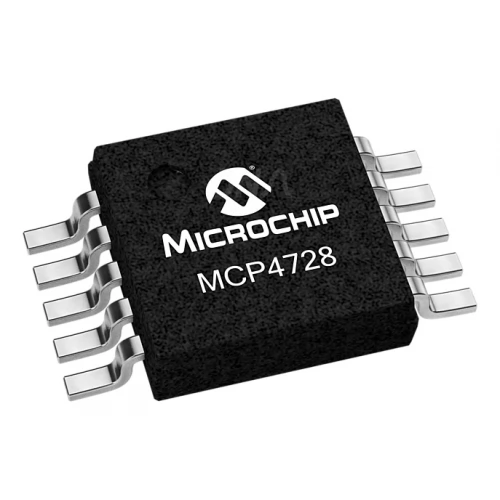

MCP4728 Digital to Analog Convertor SMD

Write a review | 1 reviews

Stock: 15
Availability: InStock priceValidUntil: 2026-10-22
Brand: Microchip
SKU: 1190 | DAB601

Rs. 212.40 (inc GST)
Rs.180.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MCP4728 Digital to Analog Convertor SMD

MCP4728 is a quad channel, 12-bit voltage output Digital-to-Analog Convertor with non-volatile memory and I2C compatible Serial Interface.

The user can program the DAC input codes, device configuration bits, and I2C address bits to the non-volatile memory (EEPROM) by using I2C™Compatible interface commands. The non-volatile memory feature enables the DAC device to hold the DAC input codes during power-off time, allowing the DAC outputs to be available immediately after power-up.

Features of MCP4728 DAC

12-Bit Resolution
4 Buffered Voltage Outputs
Single-Supply Operation : 2.7V to 5.5V
On-Board Non-Volatile Memory (EEPROM)
Normal or Power-Down Mode
Internal or External Voltage Reference Selection
Rail-to-Rail Output
Low Power Consumption
±0.2 LSB DNL (typical)
I2C Interface

-Address bits : User Programmable to EEPROM

-Standard (100 kbps), Fast (400 kbps) and High Speed (3.4 Mbps) Modes

10-lead MSOP Package
Extended Temperature Range : -40°C to +125°C
AEC-Q100 Grade 1 qualified

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited

Reviews (1)

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

Verification Code

Frequently Asked Questions

Do you provide a GST bills?

Yes we provide GST Bill by the name of DNA Solutions. You will receive a GST compliant invoice for your records. You can take GST benefit.

What is your return / replacement policy?

Returns/replacements depend on the item type and condition. If there’s an issue, contact us with photos/videos and we’ll guide you as per policy.

What if tracking shows “delivered” but I didn’t receive it?

Message us immediately. Send: order number + tracking number + delivery address confirmation. We’ll coordinate with the courier and guide next steps.

What payment methods do you accept?

We accept UPI, cards, netbanking, and other checkout options shown on the payment page.

Can you share a proforma invoice / quotation before I pay?

Yes — we can share a quotation/proforma invoice. Send: part number(s), quantity, your GSTIN (if applicable), billing name/address, and delivery PIN code.

If I order the same parts again later, will they match?

We try to maintain consistency, but supply can change. If matching lot/brand matters, tell us in advance and we’ll advise what’s available.
