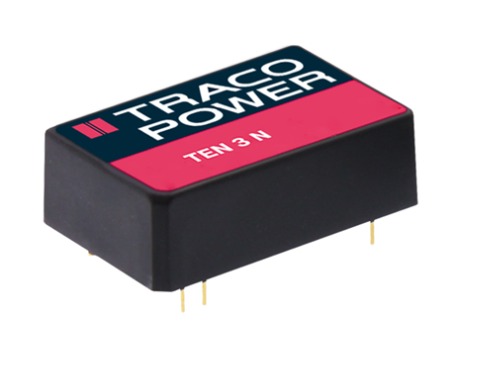

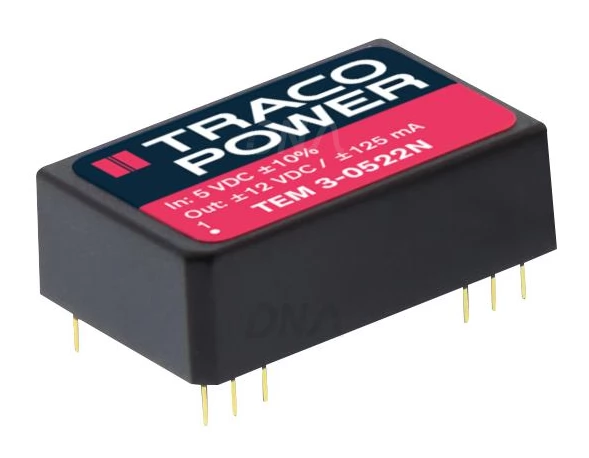

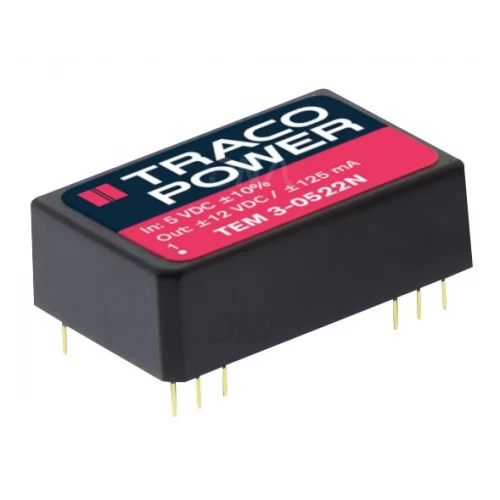

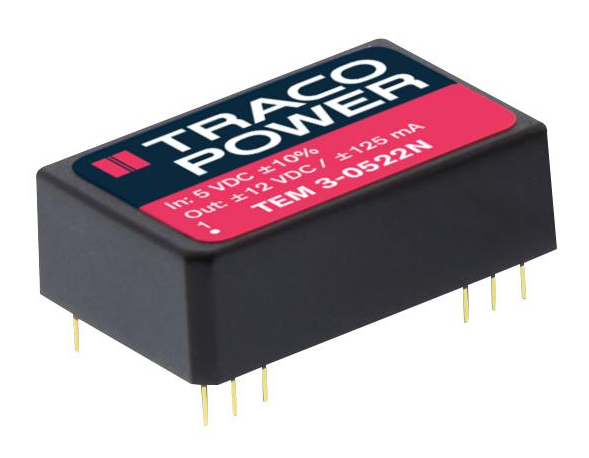

Product Images are shown for illustrative purposes only and may differ from actual product.

Traco Power TEM 3-2423N Isolated DC/DC Converter Module

Stock: 20
Availability: InStock priceValidUntil: 2026-11-13
Brand: Traco Power
SKU: 8984 | DAI129

Rs. 1,703.63 (inc GST)
Rs.1,443.75 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Traco Power TEM 3-2423N Isolated DC/DC Converter Module

TEM 3-2423N isolated DC/DC converter module with regulated +15 VDC and -15 VDC outputs, 3 W rated power and 100 mA per output.

Traco Power TEM 3-2423N is an isolated DC/DC converter module that converts a nominal 24 VDC input into regulated +15 VDC and -15 VDC rails. Its 3 W rated power suits board designs that need positive and negative supply rails from one DC input.

The regulated dual outputs support stable circuit operation as input or load changes. The module needs no minimum load, which can simplify light-load designs. Continuous short-circuit protection recovers automatically. An internal Pi-type input filter helps limit conducted noise.

Use this module in industrial electronics and consumer electronics that need compact, board-mounted dual-rail conversion. Its through-hole DIP-24 format supports PCB integration.

DNA supplies Traco Power modules for engineers and electronics buyers seeking DC to DC Converter Modules for regulated dual-rail designs. Check other DC to DC Converter Modules that we have in stock

Indian electronics buyers can contact DNA if they cannot find a required part. Ask about import support and retail or bulk orders. We can also help you find related components such as sensors, relays and microcontrollers. Contact Us

Features of Traco Power TEM 3-2423N Isolated DC/DC Converter Module

Fully regulated dual-output conversion
Continuous short-circuit protection with automatic recovery
Operates without a minimum load
Internal Pi-type input filter
Functional input-to-output insulation

Specifications of Traco Power TEM 3-2423N Isolated DC/DC Converter Module

Input voltage: 21.6–26.4 VDC (24 VDC nominal)
Output voltage: +15 VDC and -15 VDC
Maximum output current: 100 mA per output
Rated power: 3 W
Ripple and noise: 30 mVp-p typical, 60 mVp-p maximum at 20 MHz bandwidth
Operating temperature: −40°C to +85°C, with full-load operation from −40°C to +75°C and 5%/K derating above 75°C
Input-to-output isolation test voltage: 1,500 VDC for 60 s or 1,800 VDC for 1 s
Package: DIP-24 plastic case, through-hole PCB mount

Applications of Traco Power TEM 3-2423N Isolated DC/DC Converter Module

Industrial electronics
Consumer electronics

Package Includes

1 X Traco Power TEM 3-2423N Isolated DC/DC Converter Module
