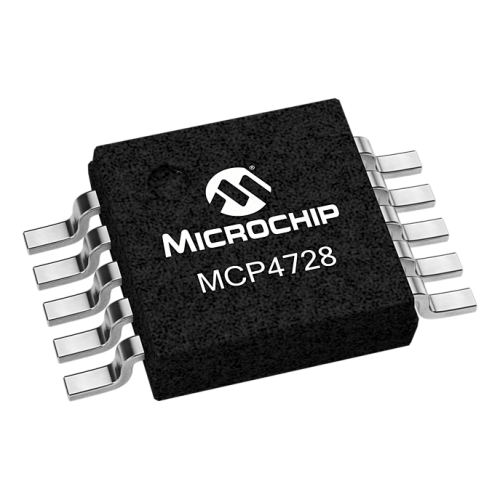

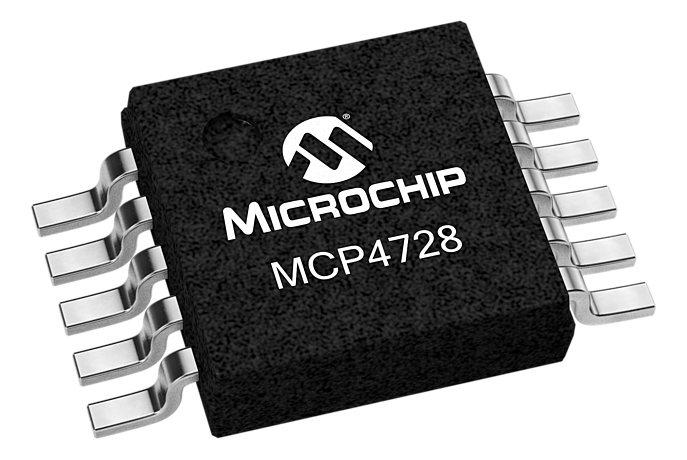

MCP4728 Digital to Analog Convertor SMD

MCP4728 is a quad channel, 12-bit voltage output Digital-to-Analog Convertor with non-volatile memory and I2C compatible Serial Interface.

The user can program the DAC input codes, device configuration bits, and I2C address bits to the non-volatile memory (EEPROM) by using I2C™Compatible interface commands. The non-volatile memory feature enables the DAC device to hold the DAC input codes during power-off time, allowing the DAC outputs to be available immediately after power-up.

Features of MCP4728 DAC

• 12-Bit Resolution

• 4 Buffered Voltage Outputs

• Single-Supply Operation : 2.7V to 5.5V

• On-Board Non-Volatile Memory (EEPROM)

• Normal or Power-Down Mode

• Internal or External Voltage Reference Selection

• Rail-to-Rail Output

• Low Power Consumption

• ±0.2 LSB DNL (typical)

• I2C Interface

               -Address bits : User Programmable to EEPROM

               -Standard (100 kbps), Fast (400 kbps) and High Speed (3.4 Mbps) Modes

• 10-lead MSOP Package

• Extended Temperature Range : -40°C to +125°C

• AEC-Q100 Grade 1 qualified
