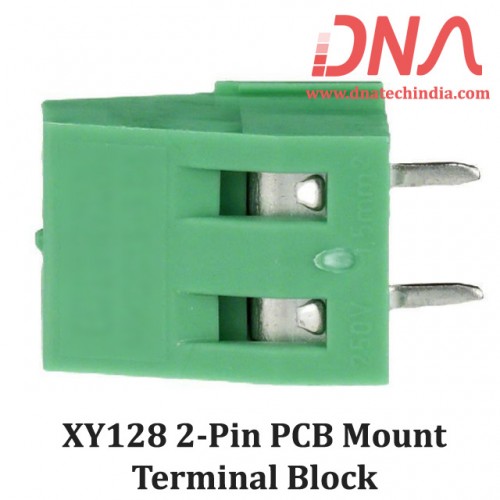

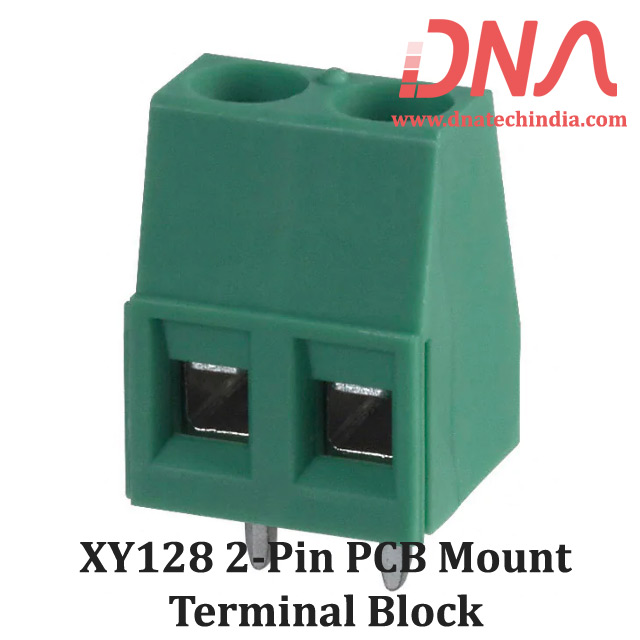

2 Pin XY128 5.08 mm pitch PCB Mount Terminal Block

XY128 PCB Mount 2 Pin 5.08 mm pitch Screwable Terminal Block Connector

This is 2 PIN PCB Mount screwable Terminal Block Connector. The XY128 Pluggable Screw Terminal Block is a compact and versatile terminal block with 5.08mm pitch and is very useful if you want to screw connecting wires to PCB.

In this XY128 2 Pin PCB Mount Screwable terminal block you can screw wires from 24-12 AWG. These terminal blocks has voltage rating of 300 volts and current rating upto 15 Ampere.

One really cool feature of the 2 pin & 3 Pin XY128 Terminal Connector is you can slide lock them together to form any size you want eg 4, 5, 10 even 20 without any problem. So basically you do not need to keep variety of these screwable terminals keeping just 2 pin version and 3 pin version will be sufficient for all your requirements.

DNA Solutions has various types of screwable connectors. Check our complete collections of Screwable Terminal Block (XY126/XY128/XY129/HB9500). We also have various types of XY-2500 F-B series combicon connectors or two piece terminal block.

Features of XY128 2 Pin Screwable Terminal Block

• Saves space due to the small design
• Screw connection with tension sleeve
• Maximum contact force ensures a low-temperature rise
• Connection in accordance with EN-VDE Standard.

Specification of XY128 2 Pin Screwable Terminal Block

• Connector : XY128 PCB Terminal Block
• Termination : Screw
• No. of Contacts : 2
• Voltage(V) : 300
• Allowed Wire Size (AWG) : 24 ~ 12
• Operating Current (A) : 15 Ampere
• Mounting Type : Through Hole
• Pin Spacing (mm) : 2.54

Package Includes:

• 1 X XY128 2 Pin PCB Mount Screwable Terminal Block
