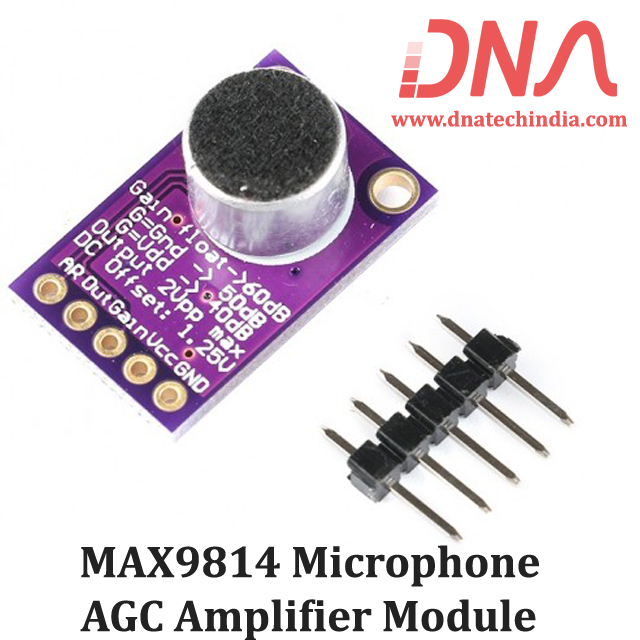

MAX9814 Microphone AGC Amplifier Module

The MAX9814 is a low cost, high performance microphone amplifier with automatic gain control (AGC) and low noise microphone bias.

The device features a low-noise front-end amplifier, a variable gain amplifier (VGA), an output amplifier, a microphone bias voltage generator, and an AGC control circuit.

The low-noise pre amplifier has a fixed 12dB gain, while the VGA gain automatically adjusts from 20dB to 0dB, depending on the output voltage and the AGC threshold. The output amplifier offers selectable gains of 8dB, 18dB, and 28dB. With no compression, the cascade of the amplifiers results in an overall gain of 40dB, 50dB, or 60dB.

A tri-level digital input programs the output amplifier gain. An external resistive divider controls the AGC threshold and a single capacitor programs the attack/release times. A tri-level digital input programs the ratio of attack-to-release time. The hold time of the AGC is fixed at 30ms. The low-noise microphone-bias-voltage generator can bias most electret microphones.

We have Various sizes of Audio, Sound and Voice Module. Check out our complete collection of Audio, Sound and Voice Module.

​Features of MAX9814 Module

• Automatic Gain Control (AGC)

• 3 kinds of gain settings (40dB, 50dB, 60dB)

• programmable action time

• programmable action and release time ratio

• Supply voltage range 2.7 Volt to 5.5 Volts

• Low THD : 0.04% (typical)

• Low-power shutdown mode

• Built-in 2 Volt low noise microphone bias
