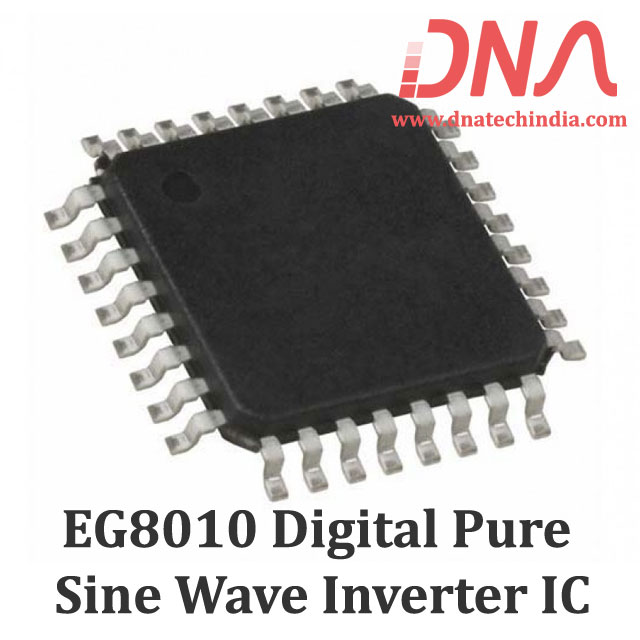

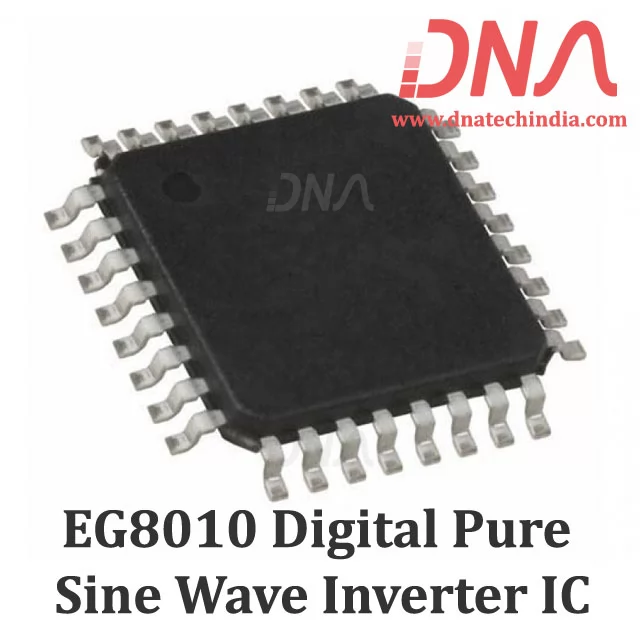

EG8010 digital pure sine wave inverter IC

EG8010 Single Phase Sinusoid Inverter ASIC

EG8010 is a digital pure sine wave inverter ASIC (Application Specific Integrated Circuit) with complete function of built-in dead time control. It applies to DC-DC-AC two stage power converter system or DC-AC single stage low power frequency transformer system for boosting. EG8010 single Phase Inverter IC can achieve 50/60Hz pure sine wave with high accuracy, low harmonic and distortion by external 12MHz crystal oscillator. EG8010 is a CMOS IC that integrates SPWM sinusoid generator, dead time control circuit, range divider，soft start circuit, circuit protection, RS232 serial communication, 12832 serial LCD unit, and etc.

Features of EG8010 digital pure sine wave inverter IC

• +5V single supply

• 4 settings of output frequency can set by 2 pins
• 2 modulation modes can set by1 pin Unipolar/Bipolar modulation
• 4 settings of dead time can set by 2 pins 300nS/500nS/1.0uS/1.5uS
• External 12MHz crystal oscillator
• 23.4KHz Modulation frequency
• Output Voltage \ Current \ Temperature detect and handle
• 3 seconds soft start can select by 1 pin
• USART communication support
• Voltage \ Current \ Temperature \ Frequency Display support by external LCD
• Parameters and functions customize support

Specifications of BL0937 Energy Meter IC

• Single-Phase sinusoid inverter


• Solar power generation inverter


• Wind power generation inverter


• UPS(Uninterruptible power supply)


• Digital Generator


• Medium frequency power supply


• Single-phase motor speed controller


• Single-phase frequency transformer


• Sinusoid light modulator


• Sinusoid voltage regulator


• Sinusoid generator


• Inverter welders
