Product Images are shown for illustrative purposes only and may differ from actual product.

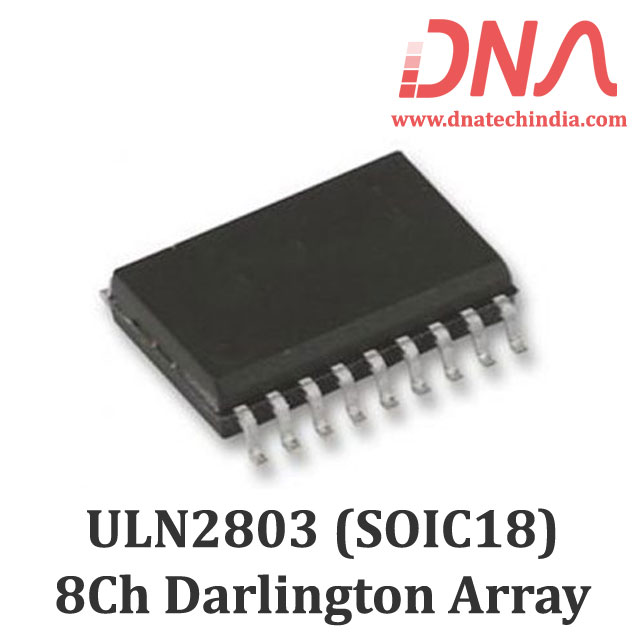

ULN2803 Darlington Driver IC (SOIC18)


Write a review | 2 reviews

  • Stock: 8

    Availability: InStock priceValidUntil: 2026-02-23

  • SKU: 3006 | DAC705

Availability: InStock priceValidUntil: 2026-02-23

  • Rs. 36.11 (inc GST)
    Rs.30.60 + GST

    Qty :

  • Quantity Pricing (inc GST)

    5 + 33.28 25 + 30.56 50 + 28.08

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

ULN2803 Darlington Driver IC

ULN2803 SOIC-18 SMD, 8 Channel Darlington sink driver IC

The ULN2803A IC is a 50 V, 500 mA Darlington transistor array. The device consists of eight NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of each Darlington pair in ULN2803 IC is 500 mA. The Darlington pairs may be connected in parallel for higher current capability.

Applications for ULN2803 IC include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. The ULN2803A device has a 2.7-kΩ series base resistor for each Darlington pair for operation directly with TTL or 5-V CMOS devices.

We have various types of GX12, GX16 & GX20 Mini Round Shell Aviation Connectors. Check our complete collection of Mini Round Shell  (MRS) Aviation Connectors.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of ULN2803 Darlington Driver SMD IC

  • Output current (single output): 500 mA (max)
  • High sustaining voltage output: 50 V (min)
  • Output clamp diodes
  • Inputs compatible with various types of logic

Related Links

Package Includes

  • 1x ULN2803 Darlington Driver IC (SOIC18)

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
