• A3144 Hall Effect Switch

Product Images are shown for illustrative purposes only and may differ from actual product.

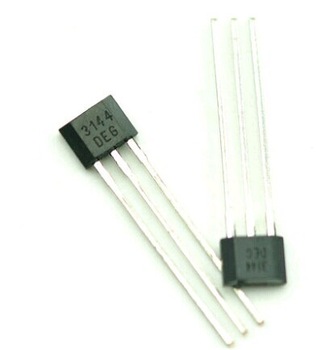

A3144 Hall Effect Switch

  • Stock: Out Of Stock
  • SKU: 0394 | DAA576
  • Rs. 17.70 (inc GST)
    Rs.15.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

A3144 Hall Effect Sensor

A3144 is a Hall effect Switch/Sensor.

A3144 is a monolithic integrated circuits with tighter magnetic specifications, designed to operate continuously over extended temperatures to +150°C, and are more stable with both temperature and supply voltage changes. The unipolar switching characteristic makes these devices ideal for use with a simple bar or rod magnet.

Each device includes a voltage regulator for operation with supply voltages of 4.5 to 24 volts, reverse battery protection diode, quadratic Hall-voltage generator, temperature compensation circuitry, small signal amplifier, Schmitt trigger, and an open-collector output to sink up to 25 mA. With suitable output pull up, they can be used with bipolar or CMOS logic circuits.

FEATURES of A3144 Hall effect Sensor

  • Superior Temp. Stability for Automotive or Industrial Applications
  • 4.5 V to 24 V Operation.Needs Only An Unregulated Supply
  • Open-Collector 25 mA Output. Compatible with Digital Logic
  • Reverse Battery Protection
  • Activate with Small, Commercially Available Permanent Magnets
  • Solid-State Reliability
  • Small Size
  • Resistant to Physical Stress

Related Links

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
