  • MCP3008 SMD IC

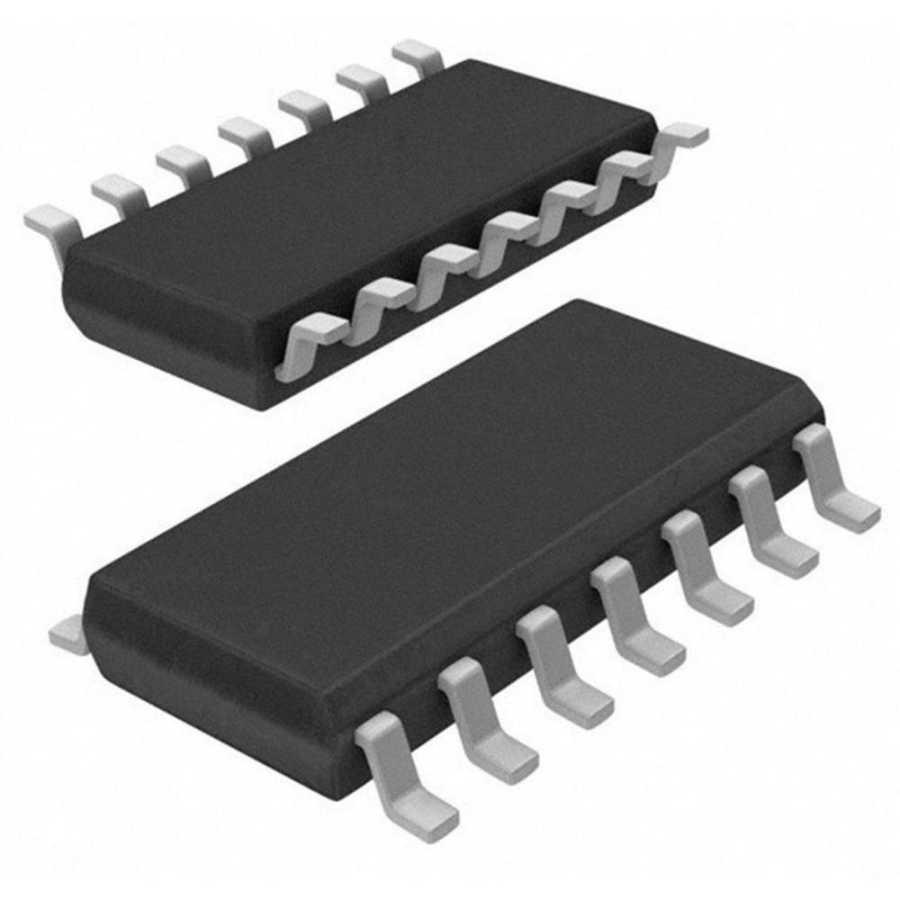

Product Images are shown for illustrative purposes only and may differ from actual product.

MCP3008 SMD IC

  • Product Code: 1556
  • Availability: 30
  • Price :

    Rs.218.30 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

MCP3008 SMD IC 8-Channel 10-Bit ADC With SPI Interface IC

MCP3008 IC - (SMD Package) - 8-Channel 10-Bit ADC With SPI Interface IC Surface-mount technology (SMT) is a method for producing electronic circuits in which the components are mounted or placed directly onto the surface of printed circuit boards (PCBs). An electronic device so made is called a surface-mount device (SMD). In the industry it has largely replaced the through-hole technology construction method of fitting components with wire leads into holes in the circuit board. Both technologies can be used on the same board, with the through-hole technology used for components not suitable for surface mounting such as large transformers and heat-sinked power semiconductors.


Specifications of MCP3008 SMD IC

  • Manufacturer: Microchip
  • Product Category: Analog to Digital Converters - ADC
  • RoHS:  Compliant
  • Series: MCP3008
  • Mounting Style: SMD/SMT
  • Package/Case: SOIC-16
  • Resolution: 10 bit
  • Number of Channels: 8 Channel
  • Sampling Rate: 200 kS/s
  • Input Type: Single-Ended
  • Interface Type: Serial, 4-Wire, SPI
  • SNR - Signal to Noise Ratio: 61 dB
  • Maximum Operating Temperature: + 85 C
  • Minimum Operating Temperature: - 40 C
  • Number of Converters: 1 Converter
  • Product: Analog to Digital Converters
  • Operating Supply Voltage: 2.7 V to 5.5 V


MCP3008 Application

Applications for the MCP3008 include data acquisition, instrumentation and measurement, multi-channel data loggers, industrial PCs, motor control, robotics, industrial automation, smart sensors, portable instrumentation and home medical appliances.

NOTE: This is a SMD IC. If you are looking for MCP3008 through hole IC click link. We also have MCP3008 Breakout board.
