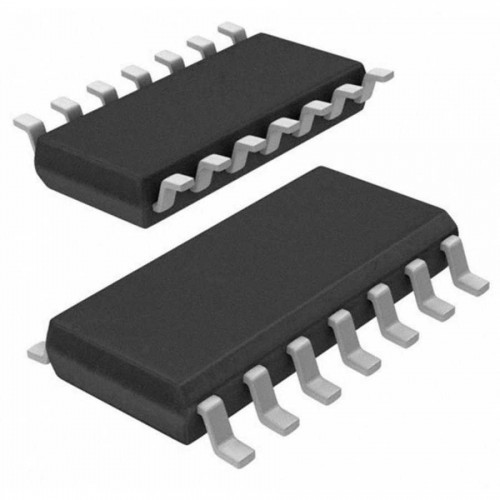

MCP3008 SMD IC

MCP3008 SMD IC 8-Channel 10-Bit ADC With SPI Interface IC

MCP3008 IC - (SMD Package) - 8-Channel 10-Bit ADC With SPI Interface IC Surface-mount technology (SMT) is a method for producing electronic circuits in which the components are mounted or placed directly onto the surface of printed circuit boards (PCBs). An electronic device so made is called a surface-mount device (SMD). In the industry it has largely replaced the through-hole technology construction method of fitting components with wire leads into holes in the circuit board. Both technologies can be used on the same board, with the through-hole technology used for components not suitable for surface mounting such as large transformers and heat-sinked power semiconductors.

Specifications of MCP3008 SMD IC

• Manufacturer: Microchip

• Product Category: Analog to Digital Converters - ADC

• RoHS:  Compliant

• Series: MCP3008

• Mounting Style: SMD/SMT

• Package/Case: SOIC-16

• Resolution: 10 bit

• Number of Channels: 8 Channel

• Sampling Rate: 200 kS/s

• Input Type: Single-Ended

• Interface Type: Serial, 4-Wire, SPI

• SNR - Signal to Noise Ratio: 61 dB

• Maximum Operating Temperature: + 85 C

• Minimum Operating Temperature: - 40 C

• Number of Converters: 1 Converter

• Product: Analog to Digital Converters

• Operating Supply Voltage: 2.7 V to 5.5 V


MCP3008 Application

Applications for the MCP3008 include data acquisition, instrumentation and measurement, multi-channel data loggers, industrial PCs, motor control, robotics, industrial automation, smart sensors, portable instrumentation and home medical appliances.

NOTE: This is a SMD IC. If you are looking for MCP3008 through hole IC click link. We also have MCP3008 Breakout board.
