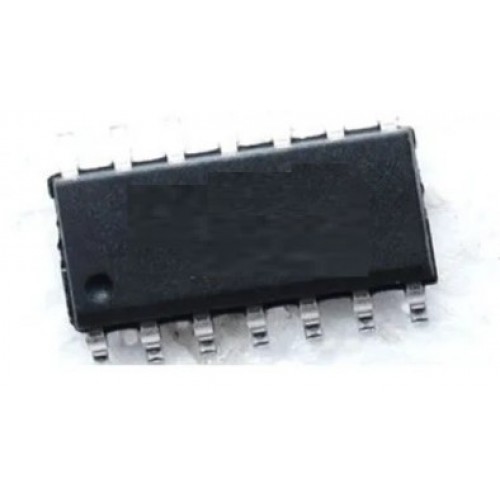

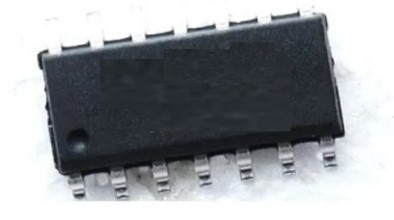

• 7408 Quad 2-Input AND Gate SMD IC

Product Images are shown for illustrative purposes only and may differ from actual product.

7408 Quad 2-Input AND Gate SMD IC

  • Stock: 5
  • SKU: 9370 | DAC916
  • Rs. 19.06 (inc GST)
    Rs.16.15 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

7408 Quad 2-Input AND Gate SMD IC

7408 Quad 2-Input AND Gate SMD IC

The 7408 is a standard quad 2-input AND gate IC belonging to the 74xx logic family. It contains four independent AND gates, each with two inputs and one output. When both inputs of a gate are HIGH (logic 1), the output is HIGH; otherwise, the output is LOW. The 7408 is widely used in digital logic circuits for implementing logic control and decision-making operations. It is available in various surface-mount (SMD) packages like SOIC-14, TSSOP-14, etc.

DNA solutions, Nashik has various types of Gate IC's. Check out our complete collection of Gate IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 7408 Quad 2-Input AND Gate SMD IC

  • Four independent 2-input AND gates in one IC
  • High-speed TTL compatible
  • Inputs and outputs fully compatible with standard TTL voltage levels
  • Low power consumption
  • High noise immunity
  • Wide operating voltage range

Specifications of 7408 Quad 2-Input AND Gate SMD IC

  • Logic Function: AND Gate
  • Number of Gates: 4
  • Number of Inputs per Gate: 2
  • Output Type: Standard TTL
  • Operating Voltage: 4.75 V to 5.25 V
  • Input Logic Level HIGH: 2 V

Applications of 7408 Quad 2-Input AND Gate SMD IC

  • Digital logic control circuits
  • Signal validation and gating
  • Arithmetic logic units
  • Industrial automation systems
  • Timers and counters

    Package Includes

          1 x 7408 Quad 2-Input AND Gate SMD IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
