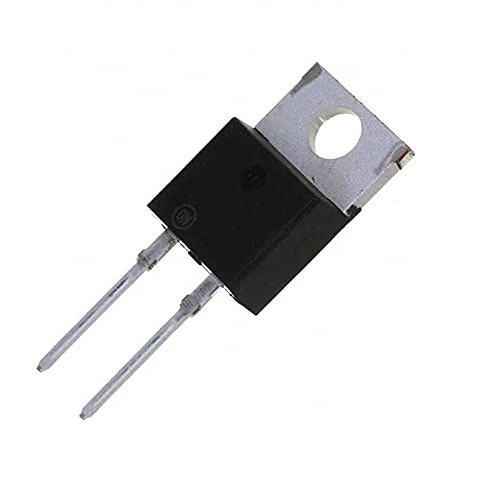

MUR1560 Ultrafast Power Diode

Write a review | 0 reviews

Stock: 5
Availability: InStock priceValidUntil: 2026-09-01
SKU: 9174 | DAF381

Rs. 83.19 (inc GST)
Rs.70.50 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

MUR1560 Ultrafast Power Diode

MUR1560 diode rated at 600V and 15A, ideal for high-speed switching with low forward voltage drop and high surge capability.

The MUR1560 Ultrafast Power Diode is a high-performance diode designed for efficient high-speed switching applications. With a voltage rating of 600V and a current capacity of 15A, it is suitable for various electronic circuits. The diode features a fast recovery time of approximately 75ns, making it perfect for freewheeling and snubber applications. Its low forward voltage drop enhances circuit efficiency.

Packaged in a TO-220 configuration, the MUR1560 Ultrafast Power Diode ensures excellent thermal performance, allowing for effective heat dissipation. This makes it an ideal choice for high-frequency rectification in switching power supplies, UPS, and battery charger circuits. The diode's high surge capability further solidifies its reliability in demanding environments.

Explore the benefits of the MUR1560 Ultrafast Power Diode for your projects. Its applications range from output rectification in inverters to snubber circuits, providing versatility and efficiency in electronic designs. Discover how it can enhance your circuit performance today.

At DNA, we offer a wide range of high-quality products from trusted manufacturers in the Diodes & Transistors category. Explore the MUR1560 Ultrafast Power Diode and see other products in this category for your electronic needs. Check other "Diodes & Transistors" that we have in stock.

If you are searching for specific electronic components, DNA can help. We import parts if they are not available. We support both retail and bulk orders. Explore related items like Inductors, Transistors, Sensor Modules, Digital ICs, SMPS, and Programmers. Contact Us.

Features of MUR1560 Ultrafast Power Diode

Ultrafast reverse recovery
Low forward voltage drop
High current handling
High surge capability
TO-220 package for efficient heat dissipation
Ideal for high-frequency rectification

Specification of MUR1560 Ultrafast Power Diode

Type: Ultrafast Recovery Power Diode
Mounting Type: Through-hole
RMS Voltage: 420V
Peak Surge Current: 200A
Temperature Range: –65°C to +175°C

Applications of MUR1560 Ultrafast Power Diode

Output rectification in inverters
Snubber diode in high-speed circuits
UPS and battery charger circuits
Switching power supplies

Package Includes

1 X MUR1560 Ultrafast Power Diode

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
