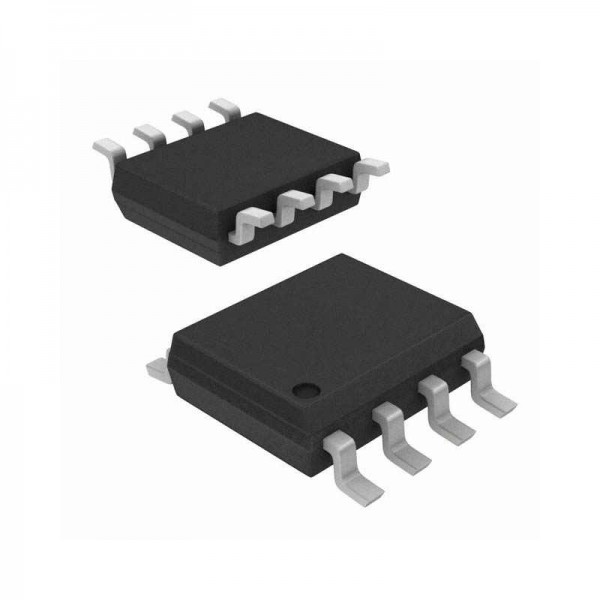

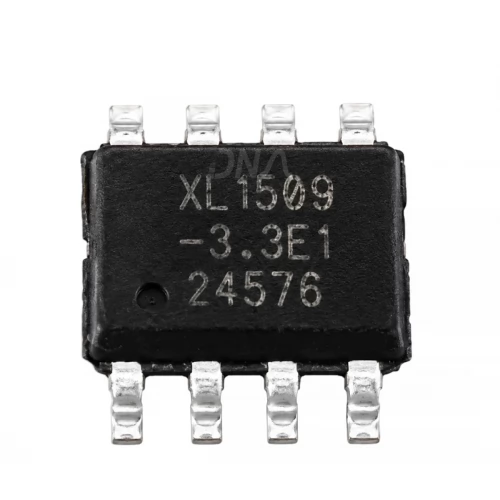

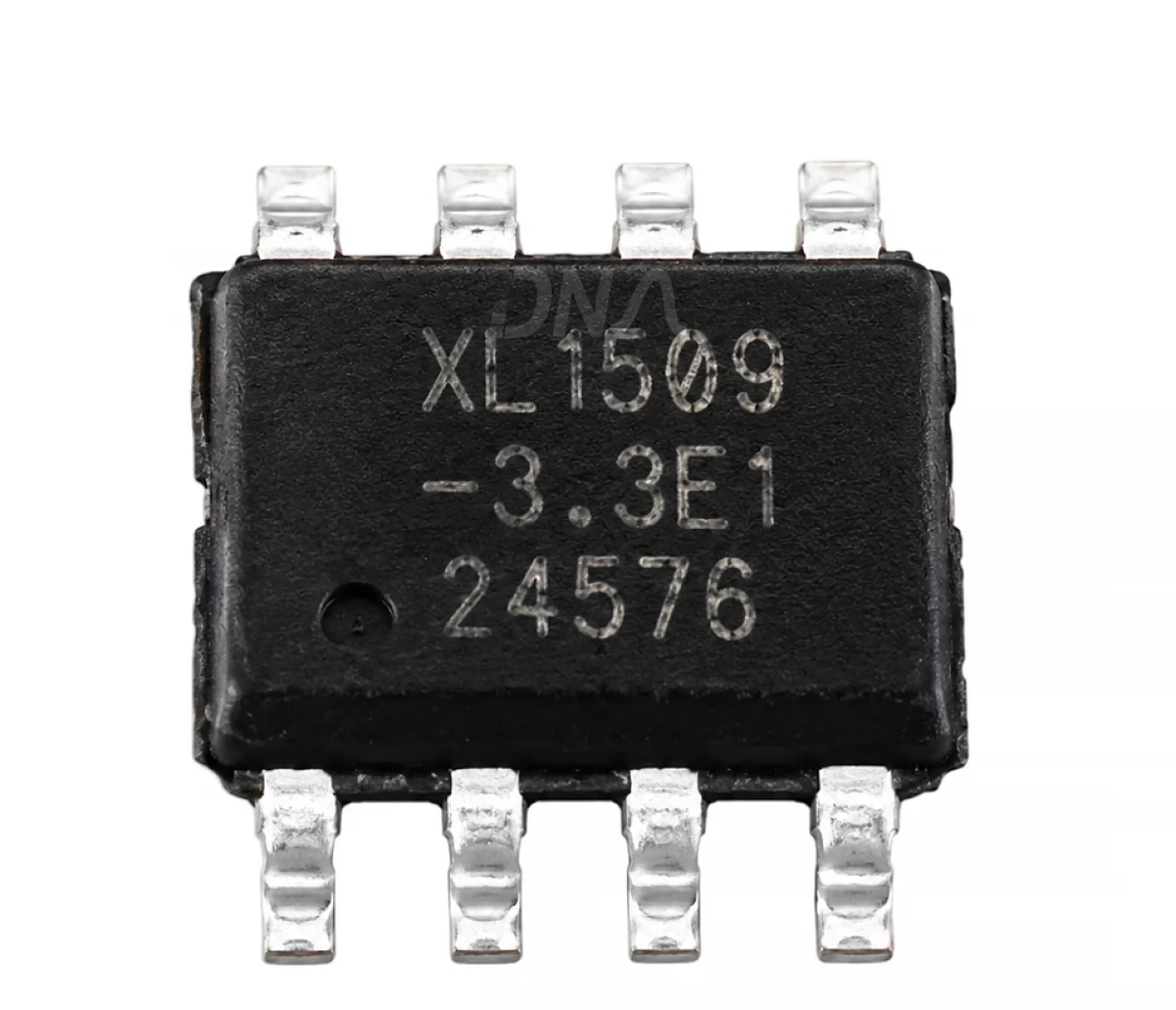

XL1509-3.3 E1 Buck DC to DC Converter IC (SOP8L Package)

Write a review | 0 reviews

Stock: 50
Availability: InStock priceValidUntil: 2026-03-06
Brand: XL Semi
SKU: 3656 | DAF396

Rs. 25.96 (inc GST)
Rs.22.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

XL1509-3.3 E1 Buck DC to DC Converter IC (SOP8L Package)

XL1509-3.3 E1 Buck DC to DC Converter IC; Fixed 3.3 Volts Output

The XL1509 is a 150 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.

This XL1509 IC has a fixed 3.3 Volts output. Other version of 5 volts, 12 Volts and adjustable versions are also available.

The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. When second current limit function happens, the operation frequency will be reduced from 150KHz to 50KHz. An internal compensation block is built in to minimize external component count.

DNA solutions, Nashik has various types of Voltage Regulators & DC to DC Buck and Boost IC's Check out our complete collection of Power DC to DC converter IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of XL1509-3.3 E1 Buck DC to DC Converter IC (SOP8L Package)

Wide 4.5V to 40V Input Voltage Range
3.3V,5V,12V, and adjustable versions; This is a fixed 3.3 Volts version
Fixed 150KHz Switching Frequency
2A Constant Output Current Capability
Internal Optimize Power Transistor
High efficiency
Output Adjustable from 1.23V to 37V
Maximum Duty Cycle 100%
Minimum Drop Out 1.5V
Excellent line and load regulation
TTL shutdown capability
ON/OFF pin with hysteresis function
Built in thermal shutdown functionz
Built in current limit function
Built in second current limit function
Available in SOIC8 package

Applications

Digital Photo Frame
LCD Monitor and LCD TV
Set-up Box
ADSL Modem
Telecom / Networking Equipment

Package Includes

1 x XL1509-3.3 E1 Buck DC to DC Converter IC (SOP8L Package)
