  • OV7670 camera module

Product Images are shown for illustrative purposes only and may differ from actual product.

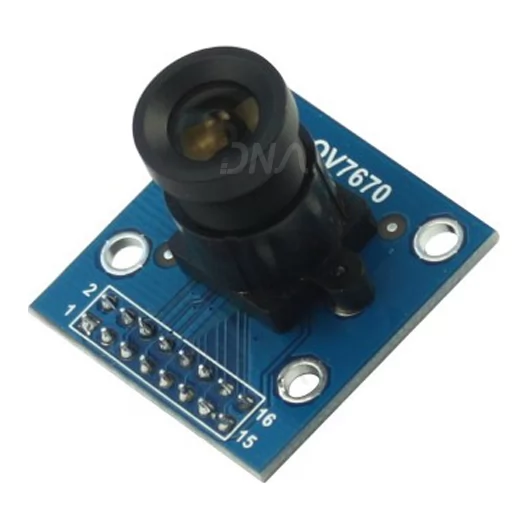

OV7670 camera module

  • Stock: 5
  • SKU: 1403 | DAA931
  • Rs. 477.90 (inc GST)
    Rs.405.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

OV7670 Serial camera module

The OV7670 image sensor is a small size, low voltage, single-chip VGA camera and CMOS image processor for all functions.

It provides full-frame, sub-sampled or windowed 8-bit images in various formats, controlled through the Serial Camera Control Bus (SCCB) interface.
The camera module is powered from a single +3.3V power supply, and external clock source for camera module XCLK pin. The OV7670 camera module has built-in on-board LDO regulator only requires single 3.3V power and can be used in Arduino, STM32, Chipkit, ARM, DSP, FPGA and etc.

Specification of OV7670 camera module

  • Optical size 1/6 inch
  • Resolution 640×480 VGA
  • Onboard regulator, only single 3.3V supply needed
  • Mounted with high quality F1.8 / 6mm lens
  • High sensitivity for low-light operation
  • VarioPixel® method for sub-sampling
  • Automatic image control functions including: Automatic
  • Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic
  • Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
  • Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
  • ISP includes noise reduction and defect correction
  • Supports LED and flash strobe mode
  • Supports scaling
  • Lens shading correction
  • Flicker (50/60 Hz) auto detection
  • Saturation level auto adjust (UV adjust)
  • Edge enhancement level auto adjust
  • De-noise level auto adjust

Application of OV7670 camera module:

  • High sensitivity suitable for illumination applications
  • Low voltage suitable for embedded applications
  • Standard SCCB interface compatible with I2C interface
  • 50/60Hz automatic detection

Reference link
