DPDT 2 way Toggle Switch (ON-ON)

  • Rs. 35.40 (inc GST)
    Rs.30.00 + GST

    Qty :

  • Quantity Pricing (inc GST)

    3 + 22.72 7 + 21.83 10 + 20.95 20 + 20.06

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

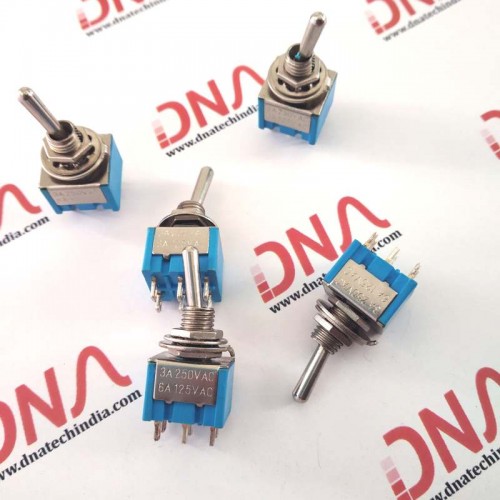

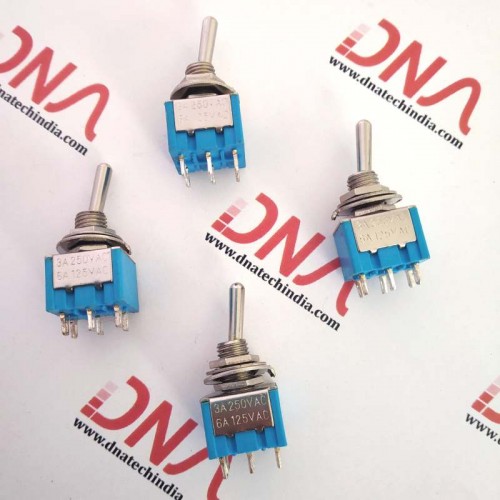

DPDT 6 Pin 2 way Toggle Switch

MTS 202 Double Pole Double Throw  (DPDT) ON-ON type panel mounting Switch with 3 Ampere rating at 230 Volts

MTS 202 is a 2 way 6 pole (ON-ON) type DPDT (Double Pole Double Throw) panel mount Switch with 3 Ampere rating at AC 230 Volts and 6 Ampere rating at 125 Volts. DPDT switches have six terminal. These switches are great for selecting between two power sources, swapping inputs, or whatever it is you do with two circuits trying to go one place. DPDT is basically two SPDT switches which can control two separate circuits, but are always switched together by a single actuator.


Specification and Features of Toggle Switch

  • Used on low voltage or high voltage circuits
  • Great for switching lights or motors
  • This switch is NOT momentary
  • There is no center position
  • Rated voltage & current: AC 125V, 6A
  • Rated voltage & current: AC 230V, 3A
  • Pin number: 6 Pins
  • Position: 2 Positions (ON / ON)
  • Material: Plastic, Metal

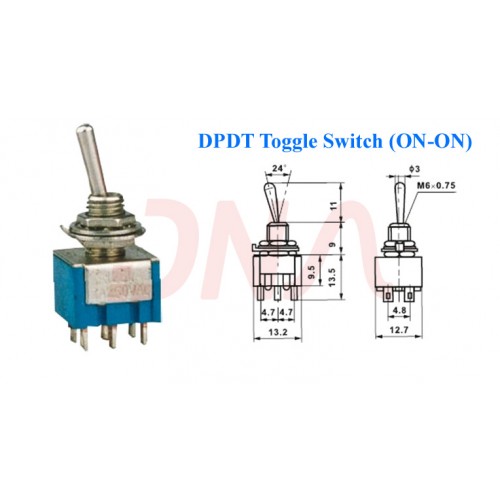

  • Size: 13 x 33mm
