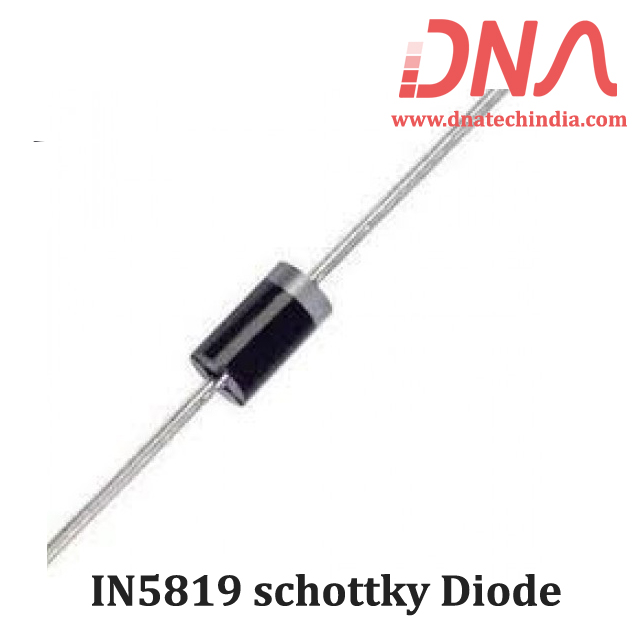

  • IN5819 schottky Diode

Product Images are shown for illustrative purposes only and may differ from actual product.

IN5819 schottky Diode

  • Product Code: 0584
  • Availability: Out Of Stock
  • Price :

    Rs.2.95 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

IN5819 schottky Diode

Features of IN5819 schottky Diode

  • Guard Ring Die Construction for Transient Protection

  • Low Power Loss, High Efficiency

  • High Surge Capability

  • High Current Capability and Low Forward Voltage Drop

  • For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application.

  • Typical Total Capacitance CT 110 pF

  • Typical Thermal Resistance Junction to Lead RJL 15 oC/W

  • Typical Thermal Resistance Junction to Ambient RJA 50 oC/W

  • Operating and Storage Temperature Range Tj, TSTG -65 to +125 oC



Machanical Data of IN5819 Diode

  • Case: DO-41

  • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0

  • Moisture Sensitivity: Level 1 per J-STD-020C

  • Terminals: Finish  Tin. Plated Leads Solderable per MIL-STD-202, Method 208

  • Polarity: Cathode Band

  • Marking: Type Number and Date Code

  • Weight: 1 grams (approximate
