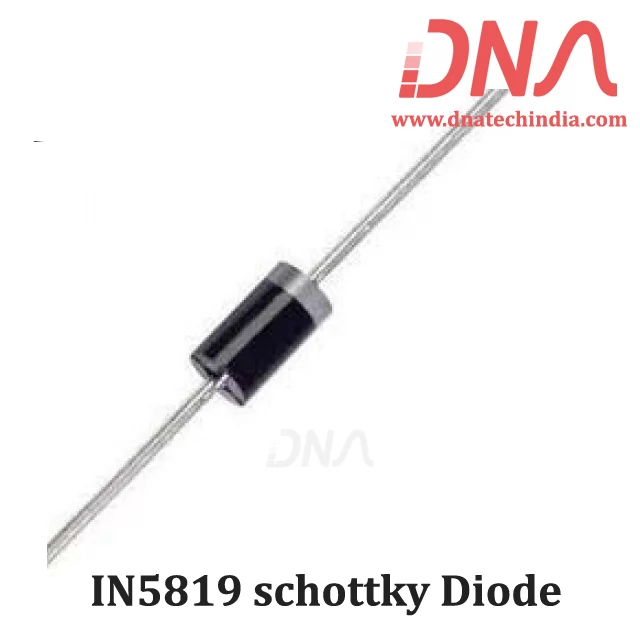

IN5819 schottky Diode

Write a review | 0 reviews

Stock: 20
Availability: InStock priceValidUntil: 2026-11-27
SKU: 584 | DAA360

Rs. 2.95 (inc GST)
Rs.2.50 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

IN5819 Schottky Diode for Efficient Power Management

IN5819 Schottky Diode offers low power loss, high efficiency, and high surge capability for various applications.

The IN5819 Schottky Diode is designed for efficient power management in low voltage applications. Its guard ring die construction ensures transient protection, making it ideal for high-frequency inverters and free wheeling applications. With a low forward voltage drop and high current capability, this diode is perfect for various electronic projects. The IN5819 Schottky Diode operates within a wide temperature range of -65 to +125 °C, ensuring reliability in different environments.

Engineered for performance, the IN5819 Schottky Diode features a typical total capacitance of 110 pF and thermal resistance junction to ambient of 50 °C/W. Its molded plastic case ensures durability, while the tin-plated leads provide excellent solderability. This diode is essential for applications requiring fast switching and low power loss.

Whether you are a hobbyist or a professional, the IN5819 Schottky Diode is a reliable choice for your electronic needs. Explore our range of Diodes & Transistors and find the right components for your projects.

At DNA, we offer top-quality diodes like the IN5819 Schottky Diode. Explore our selection in the Diodes & Transistors category for reliable electronic components. Check other "Diodes & Transistors" that we have in stock.

If you need specific electronic components, reach out to us at DNA. We can import items not in stock and support both retail and bulk orders. Explore related products like Nextion Display, Capacitors, Connectors, Development Boards, SMPS, and Programmers. Contact Us.

Features of IN5819 Schottky Diode

Guard ring die construction
Low power loss
High efficiency
High surge capability
Low forward voltage drop

Specification of IN5819 Schottky Diode

Typical total capacitance CT 110 pF
Thermal resistance junction to lead R_JL 15 °C/W
Thermal resistance junction to ambient R_JA 50 °C/W
Operating temperature range -65 to +125 °C
Case DO-41
Weight approx 1 gram

Applications of IN5819 Schottky Diode

Low voltage inverters
Free wheeling applications
Polarity protection
High frequency circuits
Power management systems

Package Includes

1 X IN5819 Schottky Diode

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
