Product Images are shown for illustrative purposes only and may differ from actual product.

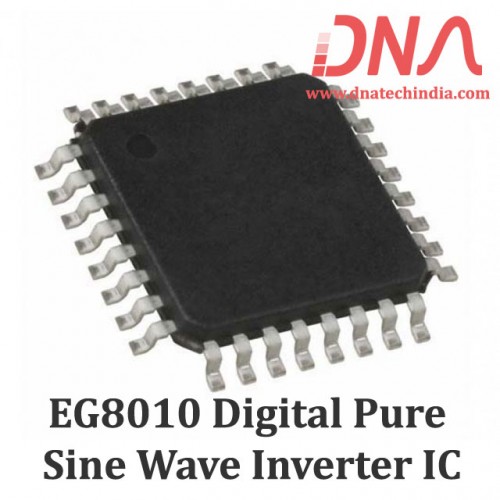

EG8010 digital pure sine wave inverter IC


Write a review | 2 reviews

  • Stock: 60

    Availability: InStock priceValidUntil: 2026-03-09

  • SKU: 3005 | DAE729

Availability: InStock priceValidUntil: 2026-03-09

  • Rs. 220.66 (inc GST)
    Rs.187.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

EG8010 digital pure sine wave inverter IC

EG8010 Single Phase Sinusoid Inverter ASIC

EG8010 is a digital pure sine wave inverter ASIC (Application Specific Integrated Circuit) with complete function of built-in dead time control. It applies to DC-DC-AC two stage power converter system or DC-AC single stage low power frequency transformer system for boosting. EG8010 single Phase Inverter IC can achieve 50/60Hz pure sine wave with high accuracy, low harmonic and distortion by external 12MHz crystal oscillator. EG8010 is a CMOS IC that integrates SPWM sinusoid generator, dead time control circuit, range divider，soft start circuit, circuit protection, RS232 serial communication, 12832 serial LCD unit, and etc.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of EG8010 digital pure sine wave inverter IC

  • +5V single supply
  • 4 settings of output frequency can set by 2 pins
  • 2 modulation modes can set by1 pin Unipolar/Bipolar modulation
  • 4 settings of dead time can set by 2 pins 300nS/500nS/1.0uS/1.5uS
  • External 12MHz crystal oscillator
  • 23.4KHz Modulation frequency
  • Output Voltage \ Current \ Temperature detect and handle
  • 3 seconds soft start can select by 1 pin
  • USART communication support
  • Voltage \ Current \ Temperature \ Frequency Display support by external LCD
  • Parameters and functions customize support

Specifications of BL0937 Energy Meter IC

  • Single-Phase sinusoid inverter
  • Solar power generation inverter
  • Wind power generation inverter
  • UPS(Uninterruptible power supply)
  • Digital Generator
  • Medium frequency power supply
  • Single-phase motor speed controller
  • Single-phase frequency transformer
  • Sinusoid light modulator
  • Sinusoid voltage regulator
  • Sinusoid generator
  • Inverter welders

                  Related Links

                  Package Includes

                  1 x EG8010 digital pure sine wave inverter IC

                  Extra Information
                  Country of Origin China
                  Imported By ElectroSource Private Limited
