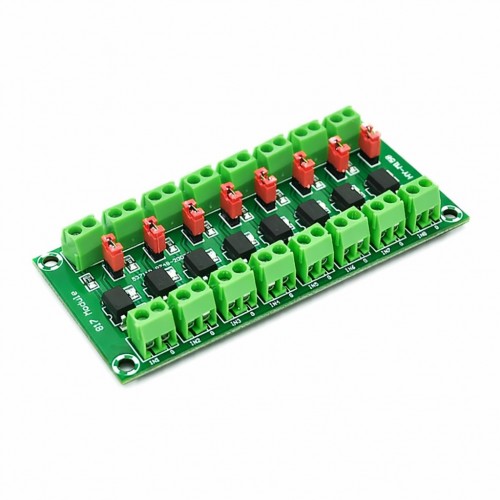

• PC 817 2/4/8 Channel Optocoupler Isolation Board Voltage Control Switching Module

Product Images are shown for illustrative purposes only and may differ from actual product.

PC 817 2/4/8 Channel Optocoupler Isolation Board Voltage Control Switching Module

  • Stock: 5
  • SKU: 9145 | DAF229
  • Rs. 293.11 (inc GST)
    Rs.248.40 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

PC 817 2/4/8 Channel Optocoupler Isolation Board Voltage Control Switching Module

PC 817 2/4/8 Channel Optocoupler Isolation Board Voltage Control Switching Module

The PC817 Optocoupler Isolation Module is designed to provide electrical isolation between high-voltage systems and low-voltage microcontroller circuits. It uses the PC817 optocoupler to safely interface control signals, prevent ground loops, and protect sensitive devices. Available in 2, 4, and 8 channel versions, this module is suitable for controlling relays, logic signals, or microcontroller input/output lines in industrial and DIY applications.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of PC 817 2/4/8 Channel Optocoupler Isolation Board Voltage Control Switching Module

  • Uses PC817 optocoupler for signal isolation.
  • Galvanic isolation between input and output sides.
  • Suitable for 3.3V or 5V control signals.
  • LED indicators for each channel
  • Each channel has its own current-limiting resistor and transistor drive.

Specifications of PC 817 2/4/8 Channel Optocoupler Isolation Board Voltage Control Switching Module

  • Optocoupler Model: PC817
  • Number of Channels: 2, 4, or 8 channels
  • Control Voltage: 3.3V to 5V logic-compatible
  • Input Current: ~5–20 mA depending on series resistor
  • Isolation Voltage: 5000 Vrms
  • Output Type: Open collector

Applications of PC 817 2/4/8 Channel Optocoupler Isolation Board Voltage Control Switching Module

  • Microcontroller Signal Isolation
  • Relay and MOSFET Triggering
  • Industrial Automation
  • Home Automation Systems

    Package Includes

          1 x PC 817 2/4/8 Channel Optocoupler Isolation Board Voltage Control Switching Module

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
