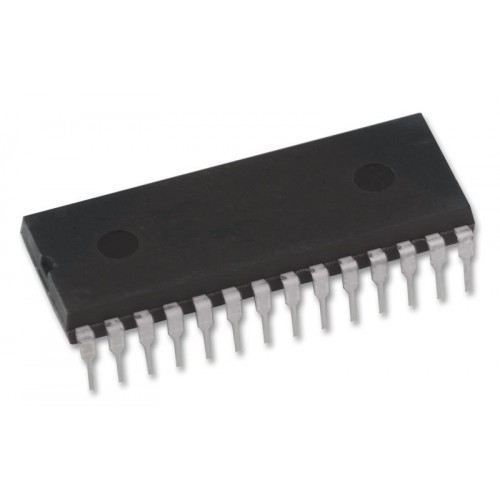

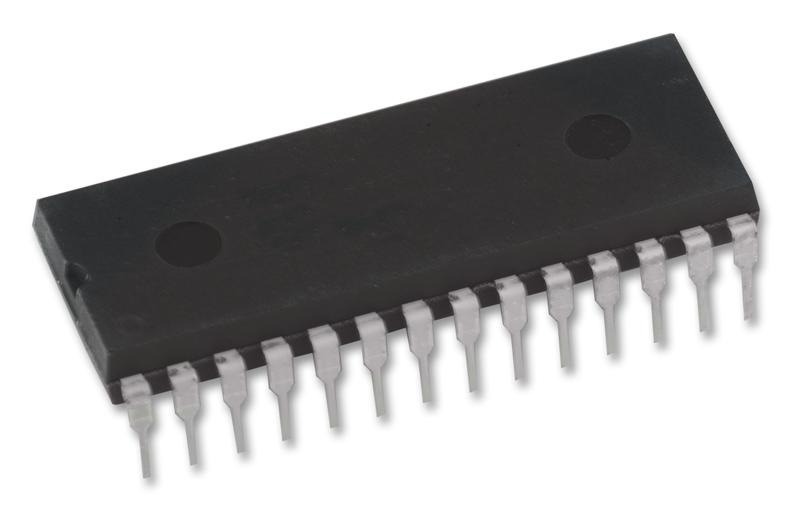

MAX306CPI 16-Channel CMOS Analog Multiplexers IC

MAX306 16-Channel CMOS Analog Multiplexers IC

MAX306CPI 16-Channel Analog Multiplexer with low on-resistance <100Ω, low leakage <2.5nA, and fast switching speeds <250ns.

The MAX306 16-Channel CMOS Analog Multiplexers IC offers a reliable solution for selecting one of multiple analog signals. With a low on-resistance of less than 100Ω and a matched resistance of within 5Ω between channels, this device ensures minimal signal distortion. It features low leakage currents, with INO(OFF) less than 2.5nA at +85°C, making it suitable for precision applications. Fast switching times of less than 250ns enhance its performance in rapid signal switching scenarios.

This multiplexer is ideal for various applications, including data acquisition systems, signal routing, and instrumentation. The MAX306 16-Channel CMOS Analog Multiplexers IC is compatible with TTL and CMOS logic levels, ensuring seamless integration into existing circuits. Its rail-to-rail signal handling capability allows for versatile use in different electronic projects.

For those in India, the MAX306 16-Channel CMOS Analog Multiplexers IC is readily available for purchase. You can order online for delivery across the country or visit our local shop in Nashik for immediate assistance.

Explore the precision of MISC ANALOG IC's with the MAX306 from a trusted brand. At DNA, we offer a wide range of MISC ANALOG IC's. Check other "MISC ANALOG IC's" that we have in stock.

If you are searching for specific electronic components, reach out to us. We can import parts that are not available and support both retail and bulk orders. Check out related items like Nextion Display, Sensors, Super Capacitors, Microcontrollers, MOSFETs, and Digital ICs. Contact Us

Features of MAX306 16-Channel CMOS Analog Multiplexers IC

• Guaranteed On-Resistance Match Between Channels <5Ω
• Low On-Resistance <100Ω
• Guaranteed Flat On-Resistance Over Specified Signal Range <7Ω
• Guaranteed Charge Injection <10pC
• INO(OFF) Leakage <2.5nA at +85°C
• ESD Protection >2000V
• TTL/CMOS-Logic Compatible

Specification of MAX306 16-Channel CMOS Analog Multiplexers IC

• IC Type: Analog Multiplexer/De multiplexer
• Channels: 8
• Package: DIP (Dual In-line Package)
• Package Type: 20-pin Plastic DIP (PDIP)
• Temperature Range: 0°C to +70°C (Commercial Grade)

Applications of MAX306 16-Channel CMOS Analog Multiplexers IC

• Data acquisition systems
• Signal routing
• Instrumentation
• Analog signal processing
• Test equipment

Related Links for MAX306 16-Channel CMOS Analog Multiplexers IC

• Other Products from MISC ANALOG IC's Category

Package Includes

• 1 X MAX306 16-Channel CMOS Analog Multiplexers IC
