• CJMCU-1051 TJA1051 CAN BUS Transceiver Module

Product Images are shown for illustrative purposes only and may differ from actual product.

CJMCU-1051 TJA1051 CAN BUS Transceiver Module

  • Stock: 5
  • SKU: 3261 | DAD349

Availability: InStock priceValidUntil: 2025-09-30

  • Rs. 168.74 (inc GST)
    Rs.143.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

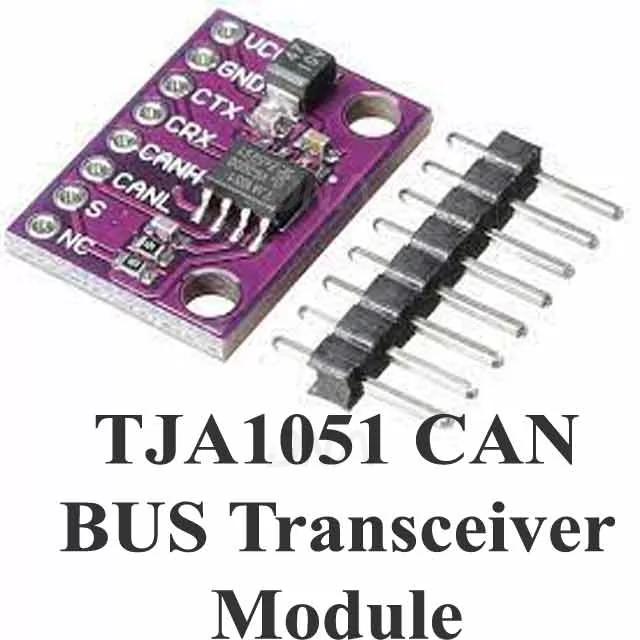

CJMCU-1051 TJA1051 CAN BUS Transceiver Module

CJMCU-1051 TJA1051 CAN BUS Transceiver Module

The TJA1051 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed CAN applications in the automotive industry, providing differential transmit and receive capability to (a microcontroller with) a CAN protocol controller. The TJA1051 belongs to the third generation of high-speed CAN transceivers from NXP Semiconductors, offering significant improvements over first- and second-generation devices such as the TJA1050. It offers improved  ElectroMagnetic Compatibility (EMC) and ElectroStatic Discharge (ESD) performance. The TJA1051 implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5. This implementation enables reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s. These features make the TJA1051 an excellent choice for all types of HS-CAN networks, in nodes that do not require a standby mode with wake-up capability via the bus.

DNA solutions, Nashik has various types of Modules. Check out our complete collection of Modules.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features

  • Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase
  • Suitable for 12 V and 24 V systems
  • Low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI)
  • VIO input on TJA1051T/3 and TJA1051TK/3 allows for direct interfacing with 3 V to 5 V microcontrollers.
  • EN input on TJA1051T/E allows the microcontroller to switch the transceiver to a very low-current Off mode
  • Available in SO8 package or leadless HVSON8 package (3.0 mm X 3.0 mm) with improved Automated Optical Inspection (AOI) capability
  • Dark green product (halogen free and Restriction of Hazardous Substances.
  • AEC-Q100 qualified.

Package Includes

1 x CJMCU-1051 TJA1051 CAN BUS Transceiver Module

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
