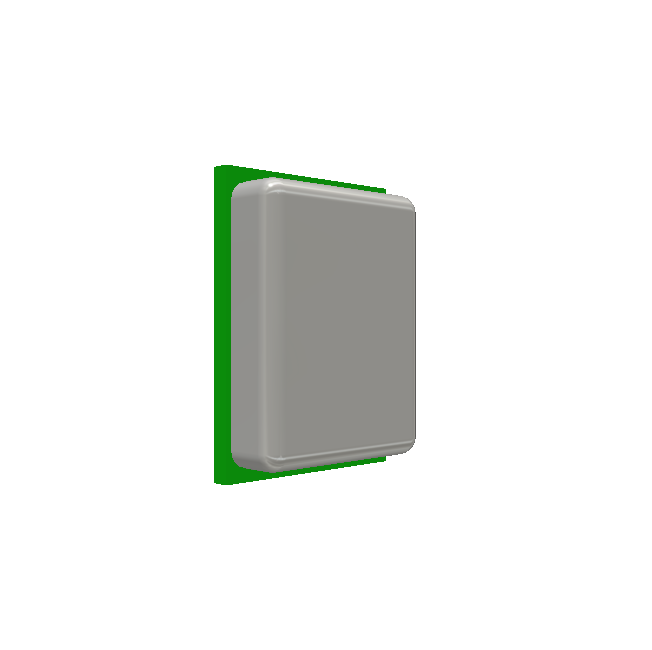

DMM-4026-B-I2S-R Microphone MEMS (Silicon)

DMM-4026-B-I2S-R Microphone MEMS (Silicon)

The DMM-4026-B-I2S-R is a high-performance, digital Micro-Electro-Mechanical System (MEMS) microphone that features an I2S (Inter-IC Sound) interface. This microphone is designed to provide excellent audio quality while simplifying the system integration process by eliminating the need for an additional analog-to-digital converter (ADC). It is widely used in applications requiring high-fidelity digital audio capture.

DNA solutions, Nashik has various types of Microphone Module's. Check out our complete collection of Microphone Module's.

• Digital I2S Output – Eliminates the need for an external ADC, simplifying integration

• Omnidirectional Pickup Pattern – Captures sound uniformly from all directions

• Low Power Consumption – Optimized for battery-operated and low-power applications

• Compact Size – Small form factor enables integration into space-constrained designs

• High Signal-to-Noise Ratio (SNR) – Provides clear and high-quality audio capture

Specifications of DMM-4026-B-I2S-R Microphone MEMS (Silicon)

• Type: MEMS (Silicon) Microphone

• Interface: Digital I2S Output

• Directivity: Omnidirectional

• Operating Voltage: Typically 1.8V to 3.3V

• Signal-to-Noise Ratio (SNR): Typically 65 dB or higher

• Frequency Response: Wideband audio range, typically 100 Hz to 10 kHz

Applications of DMM-4026-B-I2S-R Microphone MEMS (Silicon)

• Voice-Controlled Devices

• Consumer Electronics

• Automotive Applications

• Industrial & Medical Equipment

• Hearing Aids & Audio Equipment

Package Includes

      1 x DMM-4026-B-I2S-R Microphone MEMS (Silicon)
