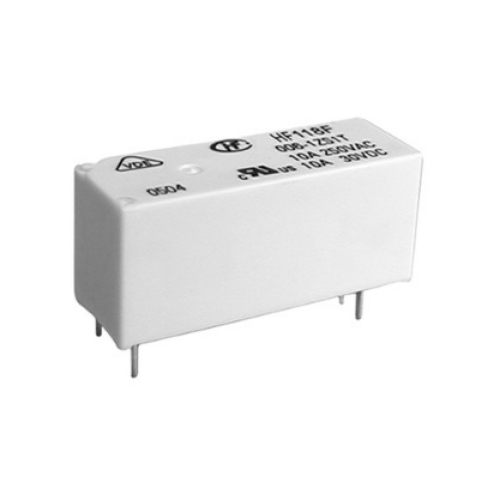

Product Images are shown for illustrative purposes only and may differ from actual product.

Hongfa HF118F/005-1ZS1T(136) 5V Form C Switching Relay

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: Hongfa
  • SKU: 9992 | DAI982

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 162.23 (inc GST)
    Rs.137.48 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hongfa HF118F/005-1ZS1T(136) 5V Form C Switching Relay

HF118F/005-1ZS1T(136) miniature Form C relay with a 5 VDC coil, 10 A resistive-load rating at 250 VAC or 30 VDC, and PCB termination.

The Hongfa HF118F/005-1ZS1T(136) is a miniature high-power relay with one Form C changeover contact. Its 5 VDC coil controls a separate circuit, and its contact rating is 10 A for resistive loads at 250 VAC or 30 VDC. It suits designs that need a 5 VDC Form C relay for PCB use.
The plastic-sealed body supports use in electronic assemblies, while AgSnO₂ contacts provide the switching interface. Through-hole PCB pins help integrate this PCB-mounted relay into a board layout.
Use it in control panels, PLCs, air conditioners and security equipment. Its changeover contact lets a control circuit switch between two contact paths, which can support varied control tasks in industrial and appliance electronics.
DNA stocks Hongfa parts for control and appliance designs. Browse our Hongfa Relay range to find relay options for your build. Check other Hongfa Relay that we have in stock
Indian electronics buyers can contact DNA if a part is not listed. We offer import support and help with both retail and bulk orders. You can also ask about Analog IC, Power Supply or Sensor products. Contact Us

Features of Hongfa HF118F/005-1ZS1T(136) 5V Form C Switching Relay

  • One Form C changeover contact for switching between two contact paths
  • Plastic-sealed construction for use in electronic assemblies
  • AgSnO₂ contact material
  • PCB termination with through-hole mounting
  • Electrical separation between the coil and contacts

Specifications of Hongfa HF118F/005-1ZS1T(136) 5V Form C Switching Relay

  • Contact rating: 10 A at 250 VAC or 30 VDC for resistive loads
  • Contact arrangement: 1 Form C (1Z)
  • Nominal coil voltage: 5 VDC
  • Coil resistance: 113 Ω ±10% at 23°C with a 5 V coil
  • Maximum switching voltage: 440 VAC or 300 VDC
  • Operate time: 10 ms maximum at nominal coil voltage
  • Dielectric strength: 5000 VAC for 1 minute between coil and contacts
  • Ambient temperature: −40°C to 85°C

Applications of Hongfa HF118F/005-1ZS1T(136) 5V Form C Switching Relay

  • Control panels
  • Programmable logic controllers (PLCs)
  • Air conditioners
  • Security equipment

Related Links for Hongfa HF118F/005-1ZS1T(136) 5V Form C Switching Relay

Package Includes

  • 1 X Hongfa HF118F/005-1ZS1T(136) 5V Form C Switching Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
