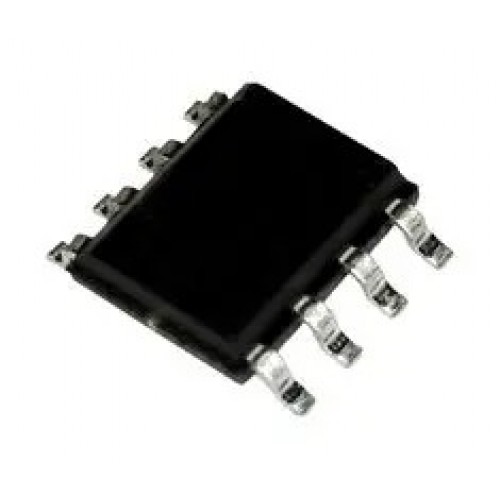

SN65HVD3082 EDR SMD IC

SN65HVD3082 EDR SMD Half-Duplex Transceiver IC

SN65HVD3082 EDR SMD IC, low-power half-duplex transceiver, 200kbps signaling rate, and 0.3mA supply current.

The SN65HVD3082 EDR SMD Half-Duplex Transceiver IC is a low-power device designed for RS-485 data bus networks. It operates at a 5V supply and adheres to the TIA/EIA-485A standard. This transceiver supports signaling rates up to 200kbps, making it ideal for long-distance data transmission. With a supply current of just 0.3mA and a shutdown mode that drops current to nanoamps, it is perfect for power-sensitive applications.

In addition to its low power consumption, the SN65HVD3082 EDR SMD Half-Duplex Transceiver IC features a wide common-mode range and high ESD protection, ensuring reliability in demanding environments. It is suitable for various applications, including energy meter networks and industrial automation, where noise tolerance is crucial. The device's failsafe receiver ensures optimal performance even in adverse conditions.

Explore our range of SMD ICs at DNA solutions, Nashik. The SN65HVD3082 EDR SMD Half-Duplex Transceiver IC is a reliable choice for your electronic component needs, whether for local purchases or online orders across India.

At DNA, we provide a comprehensive selection of high-quality components from leading manufacturers. Explore the Components & IC's category to find the right parts for your projects. Check other "Components & IC's" that we have in stock.

If you're searching for specific parts like resistors, sensors, capacitors, or microcontrollers, reach out to us. We can help with retail and bulk orders and can even import components if they're not available. Contact Us

Features of SN65HVD3082 EDR SMD Half-Duplex Transceiver IC

• Industry-standard SN75176 footprint
• Bus-pin ESD protection up to 15kV
• Green product with no Sb/Br
• 1/8 Unit-load (up to 256 nodes on the bus)
• Failsafe receiver
• Glitch-free power-up and power-down
• Low quiescent power - 0.3mA Active mode and 1nA shutdown mode

Specification of SN65HVD3082 EDR SMD Half-Duplex Transceiver IC

• Signaling rate up to 200kbps
• Supply voltage 5V
• Low supply current 0.3mA
• Shutdown current 1nA
• ESD protection up to 15kV

Applications of SN65HVD3082 EDR SMD Half-Duplex Transceiver IC

• Energy meter networks
• Industrial automation
• Telecom racks
• Electrical inverters
• Data transmission over twisted-pair cables

Package Includes

• 1 X SN65HVD3082 EDR SMD Half-Duplex Transceiver IC
