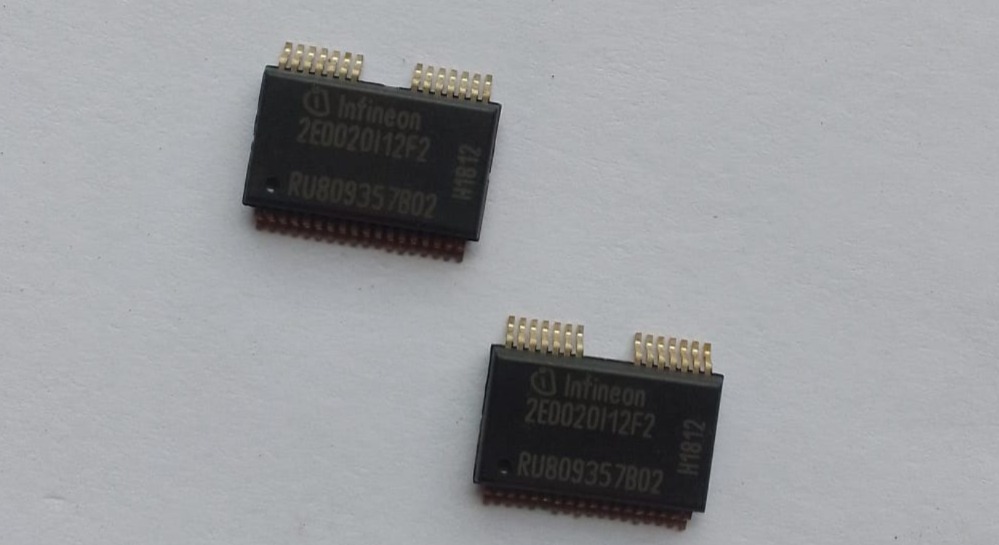

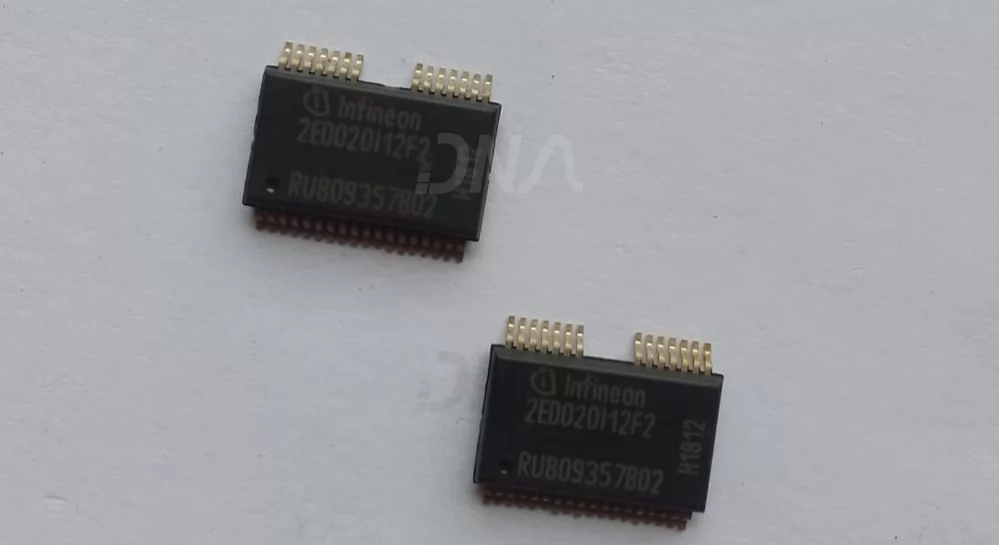

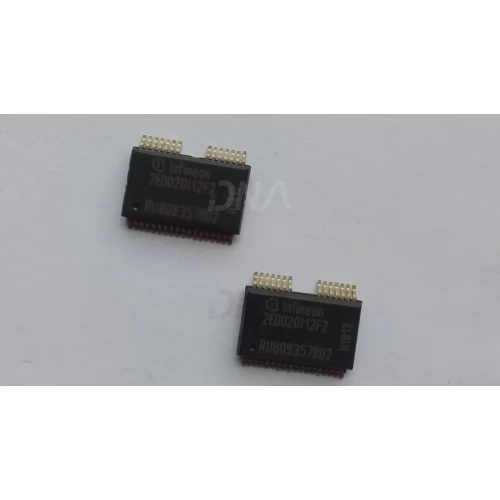

• 2ED020I12-F2 Dual channel isolated IGBT Driver IC(Infineon MAKE)

Product Images are shown for illustrative purposes only and may differ from actual product.

2ED020I12-F2 Dual channel isolated IGBT Driver IC(Infineon MAKE)

  • Stock: 5
  • SKU: 7165 | DAF795

Availability: InStock priceValidUntil: 2025-09-30

  • Rs. 808.30 (inc GST)
    Rs.685.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

2ED020I12-F2 Dual channel isolated IGBT Driver IC

2ED020I12-F2 Dual channel isolated IGBT Driver IC in PG-DSO-36-58 package

The 2ED020I12-F2 is a galvanic isolated dual channel IGBT driver in PG-DSO-36-58 package that provides two fully independent driver outputs with a current capability of typically 2A. All logic pins are 5V CMOS compatible and could be directly connected to a microcontroller. The data transfer across galvanic isolation is realized by the integrated Coreless Transformer Technology.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 2ED020I12-F2 Dual channel isolated IGBT Driver IC

  • Dual channel isolated IGBT Driver
  • For 600V/1200 V IGBTs
  • 2 A rail-to-rail output
  • Vcesat-detection
  • Active Miller Clamp
  • Coreless transformer isolated driver

Applications of 2ED020I12-F2 Dual channel isolated IGBT Driver IC

  • AC and Brushless DC Motor Drives
  • High Voltage DC/DC-Converter
  • UPS-Systems
  • Welding

    Package Includes

    1 x 2ED020I12-F2 Dual channel isolated IGBT Driver IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
