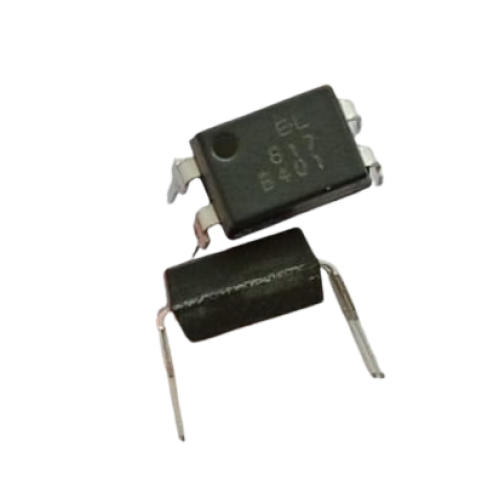

PC817B DIP Optocoupler Transistor

PC817B DIP Optocoupler Transistor

The PC817B is an optocoupler (also known as an optoisolator) that consists of a gallium arsenide infrared LED and a silicon phototransistor housed in a 4-pin Dual Inline Package (DIP). It is designed to provide electrical isolation between its input and output, typically used to isolate different sections of a circuit to prevent high voltages from affecting the system receiving the signal.

DNA solutions, Nashik has various types of Transistor's. Check out our complete collection of Transistor's.

• Compact 4-pin DIP package

• High current transfer ratio (CTR)

• Phototransistor output

• Wide operating temperature range: -30°C to +100°C

• Isolation voltage: 5,000 Vrms

Specifications of PC817B DIP Optocoupler Transistor

• Input LED forward voltage: Typ. 1.2V, Max. 1.4V

• Input current: Max. 50 mA

• Collector-emitter voltage: Max. 80V

• Emitter-collector voltage: Max. 6V

• Collector current: Max. 50 mA

• Isolation voltage: 5,000 Vrms

Applications of PC817B DIP Optocoupler Transistor

• Switching power supplies

• Relay driver circuits

• Data communication interfaces

• Microprocessor input/output isolation

• Industrial automation systems

Package Includes

      1 x PC817B DIP Optocoupler Transistor
