  • IRS2453D Full Bridge Gate Driver IC

Product Images are shown for illustrative purposes only and may differ from actual product.

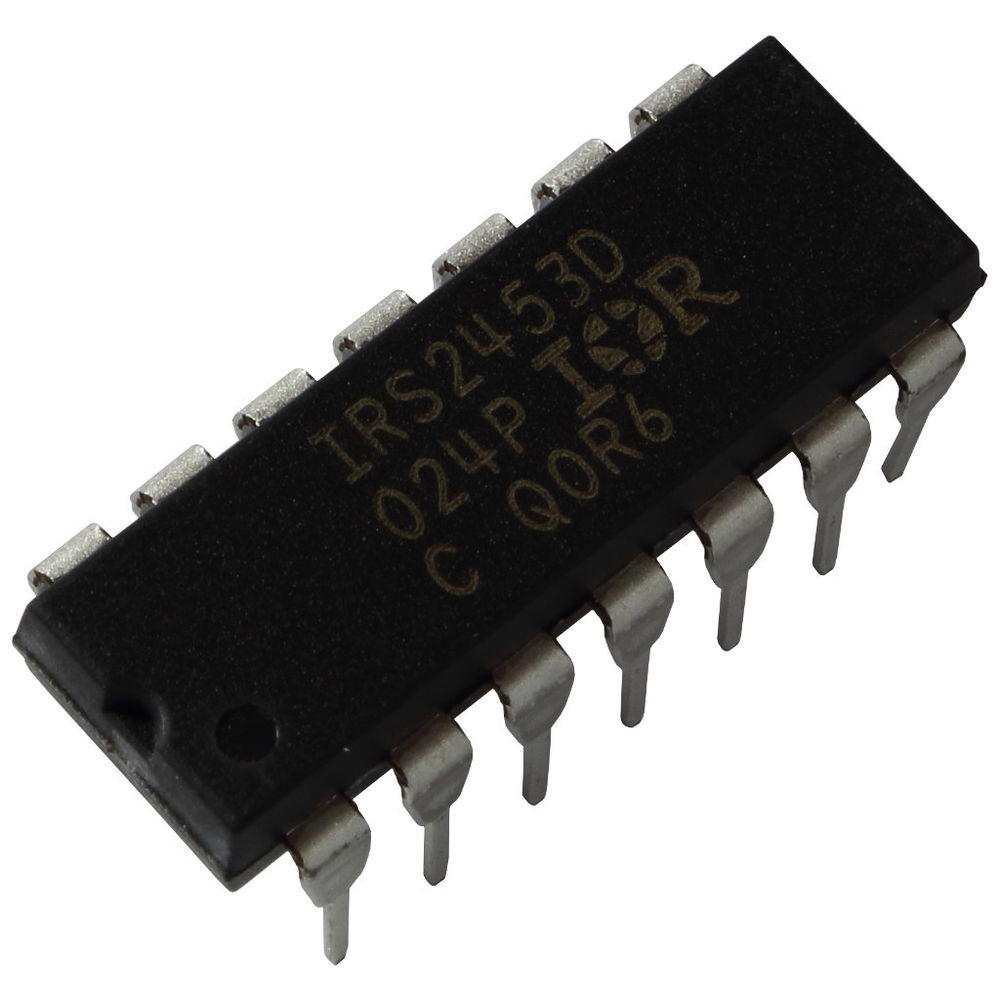

IRS2453D Full Bridge Gate Driver IC

  • Stock: Out Of Stock
  • SKU: 1132 | DAA301
  • Rs. 293.82 (inc GST)
    Rs.249.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

IRS2453D Full Bridge Gate Driver IC

HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.

IRS2453D is based on the popular IR2153 self-oscillating half-bridge gate driver IC, and incorporates a high voltage full-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer.

The output driver features a high pulse current buffer stage designed for minimum driver cross-conduction. Noise immunity is achieved with low di/dt peak of the gate drivers, and with an under voltage lockout hysteresis greater than 1.5 V. The IRS2453(1)D also includes latched and non-latched shutdown pins.

Features of IRS2453D

  • Integrated 600 V full-bridge gate driver
  • CT, RT programmable oscillator
  • 15.6 V Zener clamp on VCC
  • Micropower startup
  • Logic level latched shutdown pin
  • Non-latched shutdown on CT pin (1/6th VCC)
  • Internal bootstrap FETs
  • Excellent latch immunity on all inputs & outputs
  • ESD protection on all pins
  • 14-lead SOIC or PDIP package
  • 0.5 or 1.0µs (typ.) internal dead time
