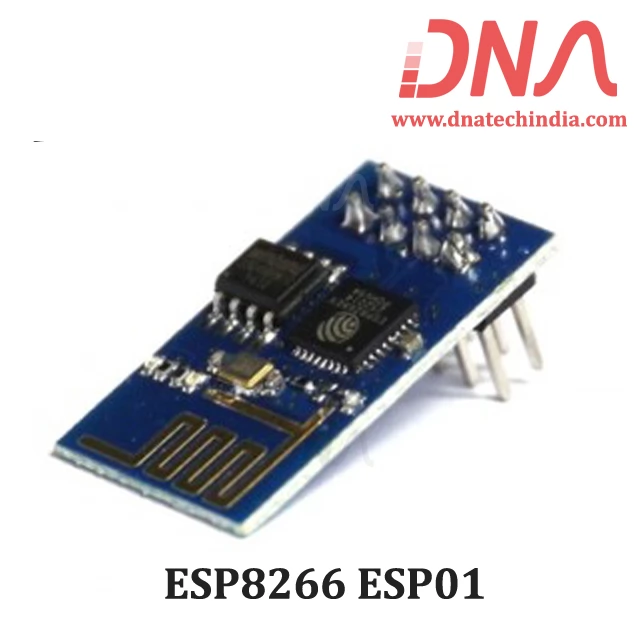

ESP8266 Serial to WiFi Module (ESP01)

The ESP8266 supports APSD for VoIP applications and Bluetooth co-existance interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions, and requires no external RF parts.

With the popularity of IoT. Internet-connected devices built with Arduino shields or single-board computers like the Raspberry Pi and Beaglebone has exploded and there is a big demand for low-cost and easy-to-use WiFi modules. Thats where the ESP2866 Serial to wifi module comes into picture.

The ESP8266 WiFi Module is a self contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The ESP8266 is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers (and that’s just out of the box)! The ESP8266 module is an extremely cost effective board with a huge, and ever growing, community.

This module has a powerful enough on-board processing and storage capability that allows it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, is designed to occupy minimal PCB area.

DNA Solutions has large collection of various types of ESP Wifi Module. Check our complete collection of ESP Wifi Module.

Features

• 802.11 b/g/n

• Wi-Fi Direct (P2P), soft-AP

• Integrated TCP/IP protocol stack

• Integrated TR switch, balun, LNA, power amplifier and matching network

• Integrated PLLs, regulators, DCXO and power management units

• +19.5dBm output power in 802.11b mode

• Power down leakage current of <10uA

• 1MB Flash Memory

• Integrated low power 32-bit CPU could be used as application processor

• SDIO 1.1 / 2.0, SPI, UART

• STBC, 1×1 MIMO, 2×1 MIMO

• A-MPDU & A-MSDU aggregation & 0.4ms guard interval

• Wake up and transmit packets in < 2ms

• Standby power consumption of < 1.0mW (DTIM3)
