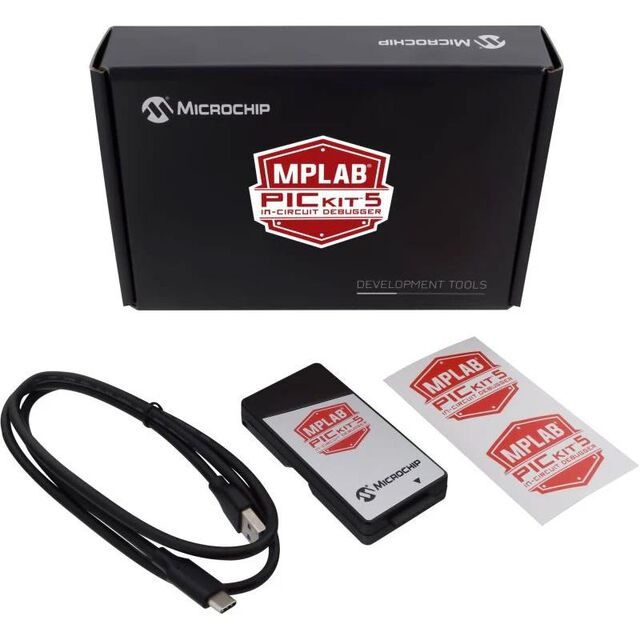

Microchip Technology PG164150 MPLAB PICkit 5 In-Circuit Debugger/Programmer

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Microchip
  • SKU: 10500 | DAJ605

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 12,164.07 (inc GST)
    Rs.10,308.53 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Microchip Technology PG164150 MPLAB PICkit 5 In-Circuit Debugger/Programmer

PG164150 in-circuit debugger/programmer with JTAG and SWD support, standalone Programmer-to-Go operation and up to 150 mA target supply.

The Microchip Technology PG164150 MPLAB PICkit 5 is an in-circuit debugger and programmer for Microchip devices. It supports JTAG and SWD, and can supply up to 150 mA to a target board.
Use it with MPLAB X IDE for real-time debugging at full device operating speed. For standalone programming, the Programmer-to-Go function can load a default image with a button press. The MPLAB PTG mobile app connects over Bluetooth, lets you browse images on the installed microSD card and start programming. Voltage monitors provide overvoltage protection, while all lines have overcurrent protection.
The PICkit 5 supports programming and debugging for PIC and dsPIC devices, AVR and SAM devices, and Arm Cortex-based microprocessors. Its USB Type-C connection and portable programming options support both development work and programming away from a computer.
DNA stocks Microchip tools for device programming and debugging. Browse our selection of Programmers to find tools for your development setup. Check other Programmers that we have in stock
Buying electronics in India? Contact DNA if you cannot find a part. Ask about import support and retail or bulk orders for items such as development boards, crystals and programmers. Contact Us

Features of Microchip Technology PG164150 MPLAB PICkit 5 In-Circuit Debugger/Programmer

  • Supports real-time debugging at full device operating speeds
  • Offers standalone Programmer-to-Go operation
  • Mobile app connects over Bluetooth to browse images and start programming
  • Voltage monitors provide overvoltage protection and all lines have overcurrent protection
  • Supports JTAG and SWD with streaming UART Virtual Comm Port

Specifications of Microchip Technology PG164150 MPLAB PICkit 5 In-Circuit Debugger/Programmer

  • Target self-power voltage: 2.7 V to 5 V when powered from the target board
  • Target supply current: 150 mA
  • Operating temperature: 0 °C to 70 °C
  • Bluetooth module: Bluetooth 5.0 certified for communication with the MPLAB PTG app
  • Host software: MPLAB X IDE version 6.10 or later
  • Host interface: USB Type-C
  • System requirements: Available USB 2.0 port and Windows 10 or later, macOS, or Linux

Applications of Microchip Technology PG164150 MPLAB PICkit 5 In-Circuit Debugger/Programmer

  • Debugging and programming PIC microcontrollers, dsPIC digital signal controllers, AVR devices, SAM devices, and Arm Cortex-based microprocessors

Related Links for Microchip Technology PG164150 MPLAB PICkit 5 In-Circuit Debugger/Programmer

Package Includes

  • 1 X Microchip Technology PG164150 MPLAB PICkit 5 In-Circuit Debugger/Programmer
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
