4 Channel Logic Level Converter

  • Stock: 35
  • SKU: 1994 | DAA738
  • Rs. 40.36 (inc GST)
    Rs.34.20 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

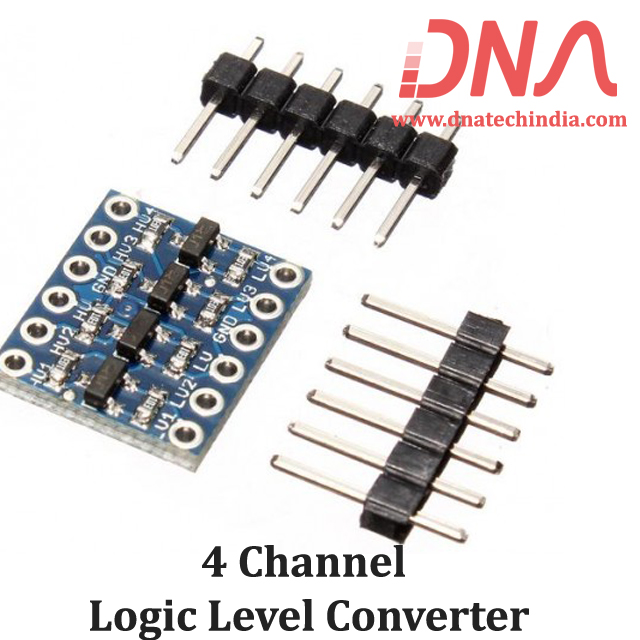

4 Channel Logic Level Converter

4 channel 1.8 to 5 volt Bi-directional logic level converter

This Level Converter- 4 Channel features four high speed bi-directional 4 channels, allowing for safe and easy communication between devices operating at different logic levels.

It can convert signals as low as 1.8 V to as high as 5 V and vice versa, and its four channels are enough to support most common bidirectional and unidirectional digital interfaces, including I²C, SPI, and asynchronous TTL serial.

A bi-directional Level Converter- 4 Channel is a small device that safely steps down 5 Volt signals to 3.3 Volt AND steps up 3.3 Volt to 5 Volt at the same time. This level converter also works with 2.8 Volt and 1.8 Volt devices.

We have Various sizes of Misc Modules. Check out our complete collection of Misc Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

How to use:

  • High voltage (5 Volt for example) to the ‘HV’ pin
  • Low voltage (3.3 Volt for example) to ‘LV’
  • Ground from the system to the ‘GND’ pin.

Specifications Of 4 Chanel Bi-Directional Logic Level Converter

  • Material : ABS + metal
  • Dimensions : 20 x 17 x 3 (L x W x H) mm
  • Mutual transform between 5 Volt TTL and 3.3 Volt TTL
  • Four channels of logic and high voltage low voltage logic can two-way transform
  • Portable and lightness, with 2 rows 6 pin contact pins
  • These are 4 Channel devices (great for I2C or SPI) and will work with all microcontrollers, Arduino, Raspberry Pi, Intel Edison, NXP Mbed
  • Level Converter- 4 Channel Compatible with the bread plate, can be used directly put on the breadboard

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
