HLK-10M03 AC to DC 3.3 Volt 10 W Power Module

  • Stock: 6
  • Brand: Hi-Link
  • SKU: 2193 | DAB766
  • Rs. 338.66 (inc GST)
    Rs.287.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

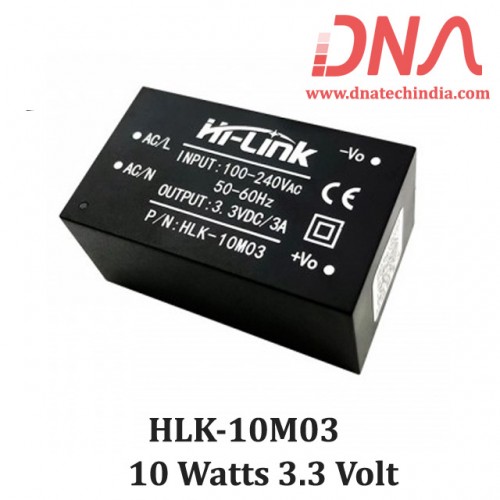

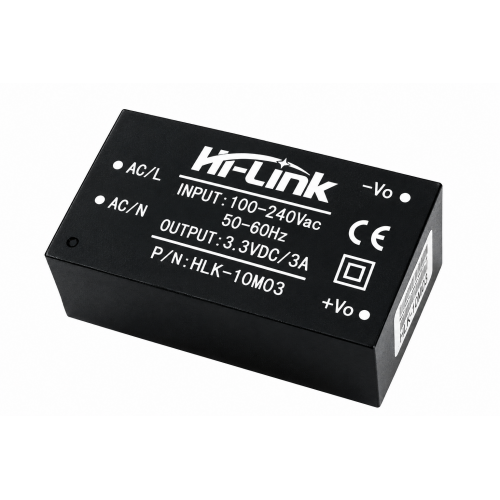

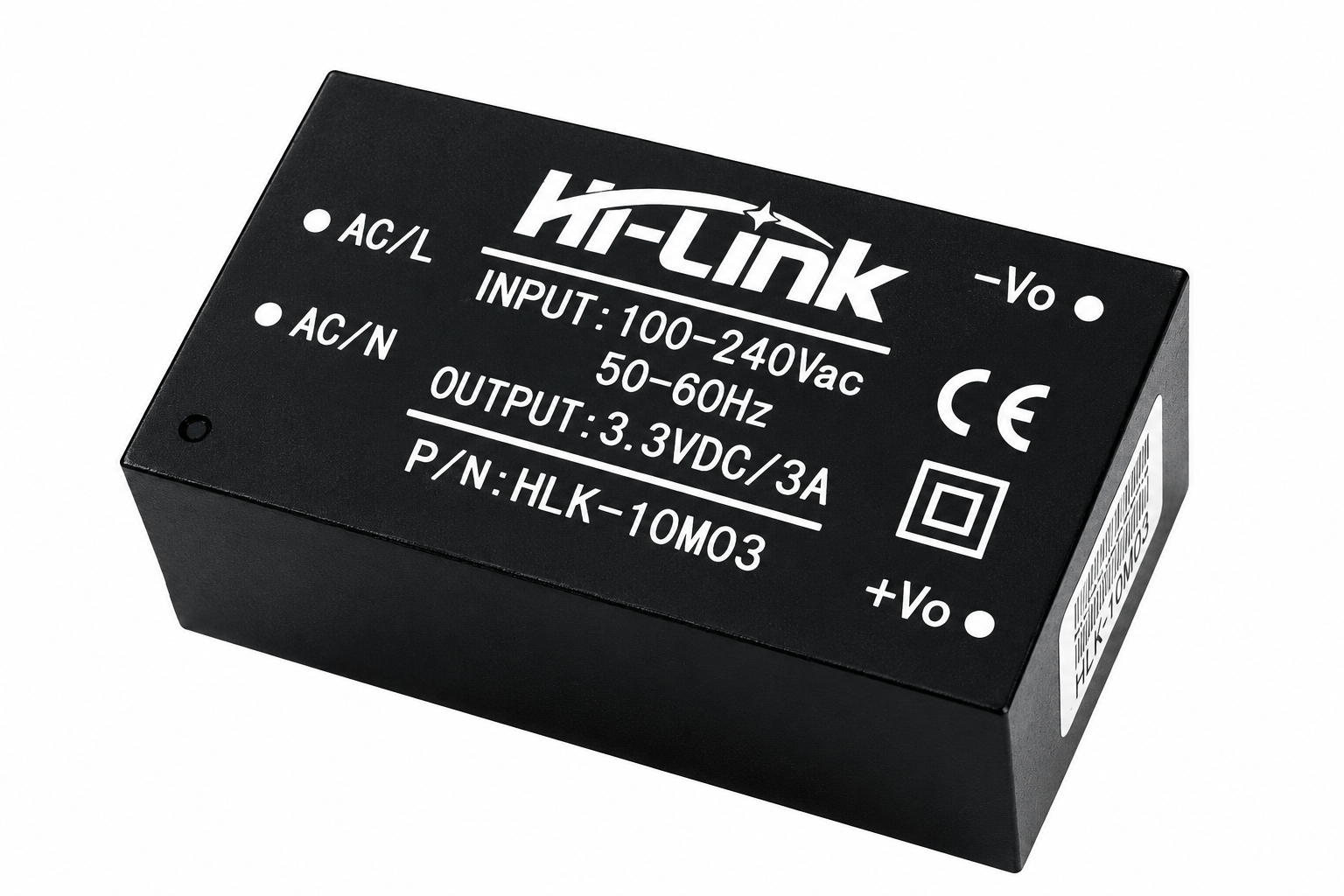

HLK-10M03 3.3 Volt 10 Watt Power Module

HLK-10M03  3.3 Volts, 10 watt PCB Mounting isolated Power Supply Module

HLK-10M03 3.3 volts 10 watt compact plastic enclosed isolated Power Supply Module. HLK-10M03 from Hilink is a isolated switching step-down power supply module and can supply 3.3 volts DC from 120 Volts to 230 Volts AC input and has a power rating of 10 watts.

This compact size power module makes it perfect to use in places where size is a constraint. HLK AC to DC power supply modules is a compact PCB mountable plastic enclosed power supply moduleHLK-10M03 Power Supply Module replaces lots of parts from the traditional power supply like diodes, voltage regulator, transformer.

HLK Power Supply modules are perfect solutions if you want your power supply on PCB. Hi-link AC to DC Power supply modules are widely used in various applications like smart homes, communication equipments, automation and control and various other industries.

DNA Solutions has various ratings of Hi-Link power suppy modules. Check our complete list of Hi-Link Power supply Modules.

Specification of HLK-10M03 Power Supply Module

  • Size : 46.9*27.8*21.8
  • Output Power : 10 watt
  • Output Voltage : 3.3 volt
  • Output Current : 3000 mA

Characteristics of HLK-10M03 AC to DC Power Module

  • Ultra-thin, ultra-small, minimum volume in the industry
  • Universal input voltage ((90~245Vac)
  • Low power consumption, environmental protection, no-load loss <0.1W
  • Low ripple and low noise
  • Good output short circuit and over-current protection and self-recovery
  • High efficiency, high power density

Safety and electromagnetic compatibility

  • The input design adopts UL certification 1A insurance;
  • The PCB board is made of double-sided copper clad foil, and the material fire resistance grade is 94-V0 grade;
  • Safety standards comply with UL1012,EN60950,UL60950
  • Insulation voltage : I/P-O/P:2500Vac
  • Insulation resistance : I/P-O/P>100M Ohms/500Vdc 25? 70% RH
  • Conduction and radiation conformance to EN55011, EN55022 (CISPR22)
  • Electrostatic discharge : IEC/EN 61000-4-2 level 4 8kV/15kV
  • Radio frequency radiation immunity : IEC/EN 61000-4-3

Related Link

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
