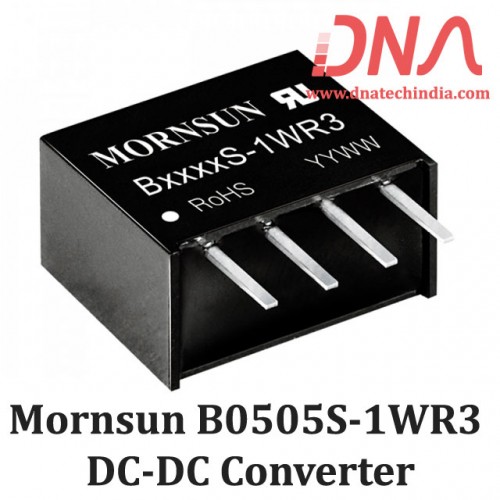

Mornsun B0505S-1WR3 Isolated DC/DC Converter Module

  • Stock: 50

    Availability: InStock priceValidUntil: 2026-12-19

  • Brand: Mornsun
  • SKU: 2969 | DAE663

Availability: InStock priceValidUntil: 2026-12-19

  • Rs. 114.46 (inc GST)
    Rs.97.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mornsun B0505S-1WR3 Isolated DC/DC Converter Module

Mornsun B0505S-1WR3 isolated DC/DC converter module with 4.5–5.5 VDC input, unregulated 5 VDC output and 1 W rated power.

The Mornsun B0505S-1WR3 is an isolated DC/DC converter module for designs that need a 5 V output from a nominal 5 V input. It accepts 4.5–5.5 VDC and delivers an unregulated 5 V output at up to 1 W.
Input-to-output isolation separates the two sides of the power circuit. The module also has continuous, self-recovery short-circuit protection, which restores operation after a short circuit is removed. Its four-pin layout supports straightforward board integration.
Use this converter in pure digital circuits, low-frequency analog circuits, relay-driven circuits and data switching circuits. Its isolated output can help power a circuit section that needs separation from the input side.
DNA supplies Mornsun modules for engineers and electronics buyers looking for DC to DC Converter Modules. Browse this category to compare options for your power design. Check other DC to DC Converter Modules that we have in stock
If you cannot find a part, contact DNA for help with sourcing and import support. We support retail and bulk orders across India. You can also ask us about diodes, development boards, capacitors, transistors and SMPS products. Contact Us

Features of Mornsun B0505S-1WR3 Isolated DC/DC Converter Module

  • Input-to-output isolation
  • Continuous, self-recovery short-circuit protection
  • Single unregulated output
  • Four-pin module layout

Specifications of Mornsun B0505S-1WR3 Isolated DC/DC Converter Module

  • Input voltage range: 4.5–5.5 VDC
  • Output voltage: 5 VDC, single unregulated output
  • Output current: 20–200 mA
  • Rated output power: 1 W
  • Full-load efficiency: 78% minimum, 82% typical
  • Isolation test voltage: 1500 VDC minimum for 1 minute, input to output
  • Operating temperature: -40°C to +105°C, with derating required at 85°C and above
  • Dimensions: 11.60 × 6.00 × 10.16 mm

Applications of Mornsun B0505S-1WR3 Isolated DC/DC Converter Module

  • Pure digital circuits
  • Low-frequency analog circuits
  • Relay-driven circuits
  • Data switching circuits

Related Links for Mornsun B0505S-1WR3 Isolated DC/DC Converter Module

Package Includes

  • 1 X Mornsun B0505S-1WR3 Isolated DC/DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
