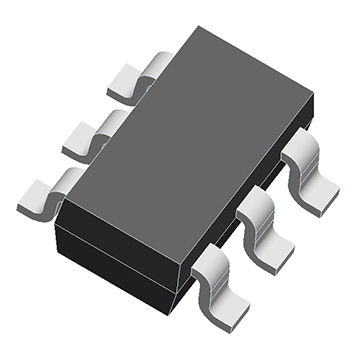

  • DW01 SOT23-6 Lithum Battery protection IC

Product Images are shown for illustrative purposes only and may differ from actual product.

DW01 SOT23-6 Lithum Battery protection IC

5.00 1 5
Write a review | 1 reviews

  • Stock: 4837
  • SKU: 1555 | DAB608
  • Rs. 7.08 (inc GST)
    Rs.6.00 + GST

    Qty :

  • Quantity Pricing (inc GST)

    3 + 6.37 7 + 5.66 10 + 4.96 20 + 4.25

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

DW01 SOT23-6 Lithum Battery protection IC

DW01 SOT23-6 Lithum Battery protection IC

The DW01 battery protection IC is designed to protect lithium-ion/polymer battery from damage or degrading the lifetime due to overcharge, over discharge, and/or over current for one-cell lithium-ion/polymer battery powered systems, such as cellular phones.
The ultra-small package and less required external components make it ideal to integrate the DW01-P into the limited space of battery pack. The accurate ±50mV overcharging detection voltage ensures safe and full utilization charging. The very low standby current drains little current from the cell while in storage DW01 DW01D DW01A SOT23-6 mobile power lithium protection IC chip.

Features of DW01 IC

  • Reduction in Board Size due to Miniature
  • Package SOT-23-6.
  • Ultra-Low Quiescent Current at 3μA (Vcc=3.9V).
  • Ultra-Low Power-Down Current at 0.1μA (Vcc=2.0V).
  • Precision Overcharge Protection Voltage 4.25V ± 50mV
  • Load Detection Function during Overcharge Mode.
  • Two Detection Levels for Over-current Protection.

Applications

  • Protection IC for One-Cell Lithium-Ion / Lithium-Polymer Battery Pack
