Product Images are shown for illustrative purposes only and may differ from actual product.

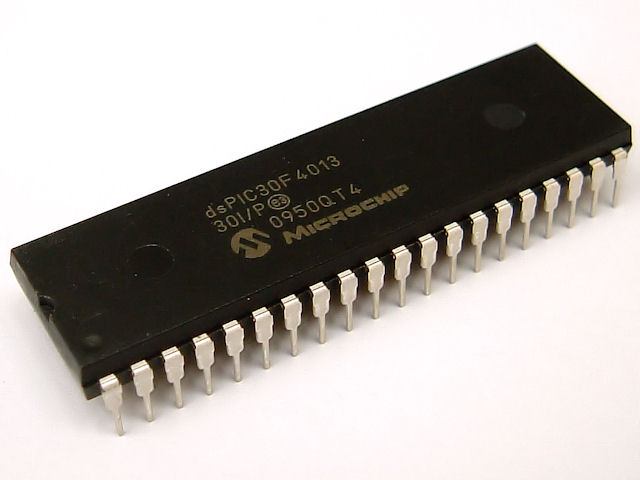

dsPIC30F4013
-
Rs.
601.80 (inc GST)
Rs.510.00 + GSTQty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
| Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location. |
dsPIC30F4013
dsPIC30F4013
dsPIC30F4013 Features
High-Performance Modified RISC CPU:
- Modified Harvard architecture
- C compiler optimized instruction set architecture
- Flexible addressing modes
- 84 base instructions
- 24-bit wide instructions, 16-bit wide data path
- Up to 48 Kbytes on-chip Flash program space
- 2 Kbytes of on-chip data RAM
- 1 Kbyte of non-volatile data EEPROM
- 16 x 16-bit working register array
- Up to 30 MIPs operation:
- DC to 40 MHz external clock input - 4 MHz-10 MHz oscillator input with- PLL active (4x, 8x, 16x)
- Up to 33 interrupt sources:
- 8 user selectable priority levels - 3 external interrupt sources - 4 processor traps
- Modified Harvard architecture
- C compiler optimized instruction set architecture
- Flexible addressing modes
- 84 base instructions
- 24-bit wide instructions, 16-bit wide data path
- Up to 48 Kbytes on-chip Flash program space
- 2 Kbytes of on-chip data RAM
- 1 Kbyte of non-volatile data EEPROM
- 16 x 16-bit working register array
- Up to 30 MIPs operation:
- PLL active (4x, 8x, 16x)
- Up to 33 interrupt sources:
DSP Features:
- Dual data fetch
- Modulo and Bit-reversed modes
- Two 40-bit wide accumulators with optional saturation logic
- 17-bit x 17-bit single cycle hardware fractional/ integer multiplier
- All DSP instructins are single cycle
- Multiply-Accumulate (MAC) operation- Single cycle ±16 shift
Peripheral Features of ds PIC4013
- High current sink/source I/O pins : 25 mA/25 mA
- Up to five 16-bit timers/counters; optionally pair
- 6-bit timers into 32-bit timer modules
- Up to four 16-bit Capture input functions
- Up to four 16-bit Compare/PWM output functions
- Data Converter Interface (DCI) supports common audio Codec protocols, including I2S and AC’97
- 3-wire SPI™ module (supports 4 Frame modes)
- I2C™ module supports Multi-Master/Slave mode and 7-bit/10-bit addressing
- Up to two addressable UART modules with FIFO buffers
- CAN bus module compliant with CAN 2.0B standard
Analog Features of dsPIC30f4013
- 12-bit Analog-to-Digital Converter (A/D) with:
- 100 Ksps conversion rate
- Up to 13 input channels
- Conversion available during Sleep and Idle- Programmable Low Voltage Detection (PLVD)
- Programmable Brown-out Detection and Reset generation
- High current sink/source I/O pins : 25 mA/25 mA
- Up to five 16-bit timers/counters; optionally pair
- 6-bit timers into 32-bit timer modules
- Up to four 16-bit Capture input functions
- Up to four 16-bit Compare/PWM output functions
- Data Converter Interface (DCI) supports common audio Codec protocols, including I2S and AC’97
- 3-wire SPI™ module (supports 4 Frame modes)
- I2C™ module supports Multi-Master/Slave mode and 7-bit/10-bit addressing
- Up to two addressable UART modules with FIFO buffers
- CAN bus module compliant with CAN 2.0B standard
Analog Features of dsPIC30f4013
- 12-bit Analog-to-Digital Converter (A/D) with:
- 100 Ksps conversion rate
- Up to 13 input channels
- Conversion available during Sleep and Idle- Programmable Low Voltage Detection (PLVD)
- Programmable Brown-out Detection and Reset generation
- 12-bit Analog-to-Digital Converter (A/D) with:
- 100 Ksps conversion rate
- Up to 13 input channels
- Conversion available during Sleep and Idle- Programmable Low Voltage Detection (PLVD)
- Programmable Brown-out Detection and Reset generation
