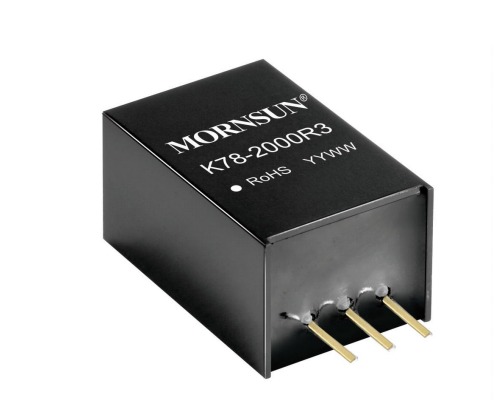

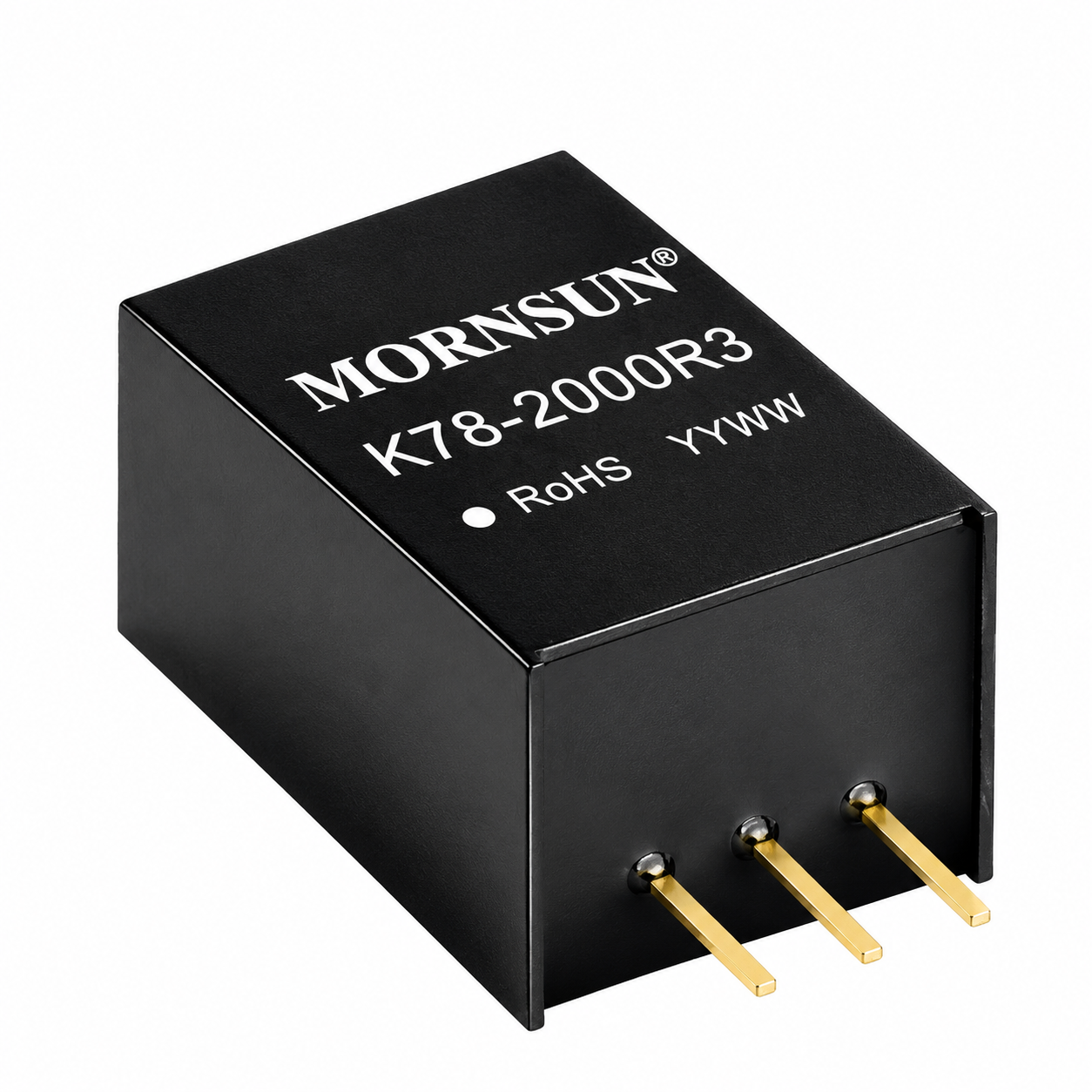

Mornsun K7812-2000R3 Regulated DC/DC Converter Module

Name: Mornsun K7812-2000R3 Regulated DC/DC Converter Module
Brand: Mornsun
SKU: DAI363
Price: 303.21 INR
Availability: InStock
Rating: 4 (6 reviews)

Write a review | 6 reviews

Stock: 20
Availability: InStock priceValidUntil: 2026-11-16
Brand: Mornsun
SKU: 9400 | DAI363

Rs. 303.21 (inc GST)
Rs.256.96 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Mornsun K7812-2000R3 Regulated DC/DC Converter Module

Mornsun K7812-2000R3 regulated DC/DC converter module with 12 V or -12 V output options, up to 2 A output, and short-circuit recovery.

The Mornsun K7812-2000R3 is a regulated DC/DC converter module for single-output power conversion. It offers a 12 V positive output option rated up to 2 A or a -12 V negative output option rated up to 600 mA. Input range depends on the chosen output polarity.

Its non-isolated switching design supports efficient conversion in a compact three-pin module. Short-circuit protection uses continuous self-recovery, while pin compatibility with LM78XX series linear regulators can simplify designs that use those regulators. The module uses free-air convection cooling.

Use this 12 V DC/DC converter in industrial control, instrumentation and electric power equipment. Its regulated output helps supply circuits that need a stable positive or negative rail. Confirm the required output polarity for the intended unit before selection.

DNA stocks Mornsun power modules for electronics buyers who need clear technical options. Explore this regulated converter and other DC to DC Converter Modules for your designs. Check other DC to DC Converter Modules that we have in stock

If you cannot find a part, contact DNA for help. We support Indian buyers with import requests and retail or bulk orders. Ask us about related parts such as SMPS and power supplies. Contact Us

Features of Mornsun K7812-2000R3 Regulated DC/DC Converter Module

Regulated switching conversion
Non-isolated design
Continuous short-circuit protection with self-recovery
Pin-compatible with LM78XX series linear regulators
Free-air convection cooling

Specifications of Mornsun K7812-2000R3 Regulated DC/DC Converter Module

Output voltage: 12 VDC positive or -12 VDC negative option
Input voltage: 16–36 VDC for the positive option, nominal 24 VDC
Maximum output current: 2000 mA for the positive option
Voltage accuracy: ±2% typical, ±3% maximum at full load across the input range
Operating temperature: -40 °C to +85 °C, with output power derating
Package: Three-pin module
Dimensions: 11.50 × 9.00 × 17.50 mm

Applications of Mornsun K7812-2000R3 Regulated DC/DC Converter Module

Industrial control
Instrumentation
Electric power

Package Includes

1 X Mornsun K7812-2000R3 Regulated DC/DC Converter Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
