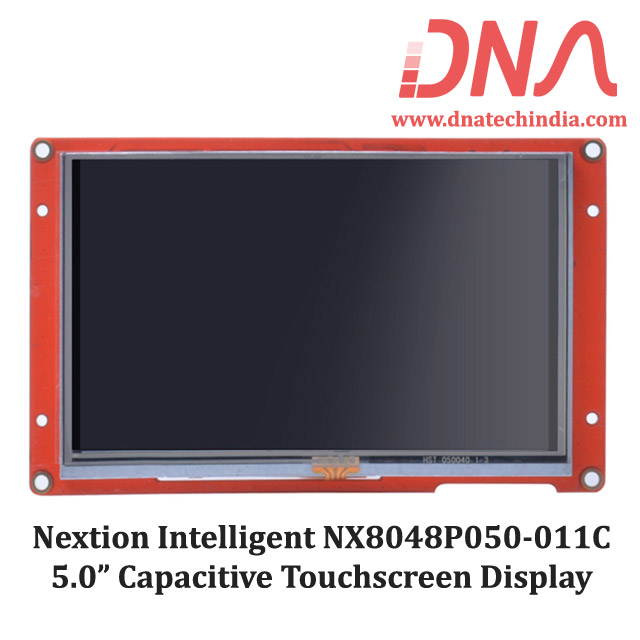

Nextion Intelligent NX8048P050-011C 5.0" Capacitive Touchscreen Display

  • Stock: Out Of Stock
  • Brand: ITead
  • SKU: 2877 | DAE530
  • Rs. 7,975.62 (inc GST)
    Rs.6,759.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

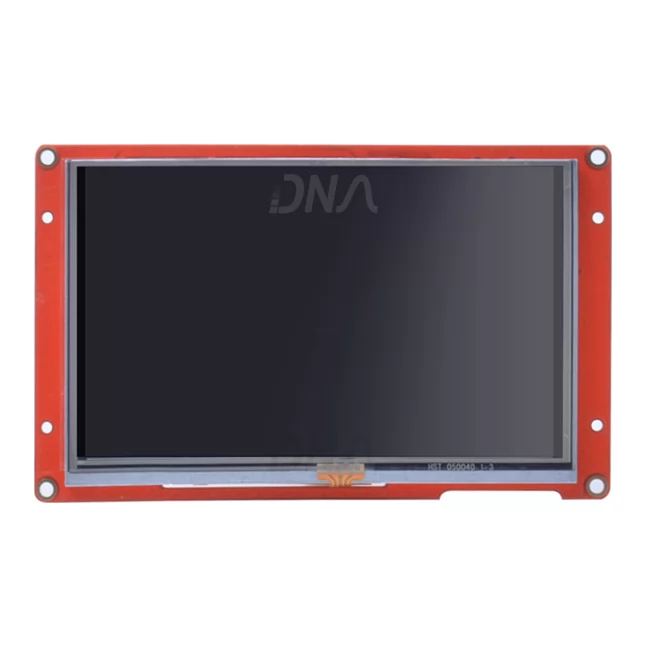

Nextion NX8048P050-011C 5.0" Intelligent Capacitive HMI

NX8048P050-011C - Nextion  5.0" Intelligent series HMI Capacitive touchscreen without enclosure.

NX8048P050-011C is a 5.0" Nextion Display with Capacitive touchscreen display. This display is from the Newly launched Intelligent series and is very easy to use and can be interfaced to your Microcontroller using simple UART port. The Nextion display can be easily interfaced to any Microcontroller using just 2 wires.

Nextion NX8048P050-011C is a 5.0" Intelligent series SMART HMI Touch display having capacitive touch screen. There are several Nextion display modules, with sizes ranging from 2.4” to 10.1". Nextion displays has a built-in microcontroller that controls the  display, it takes care of which button has been clicked, creating text, storing images or change the background. The Nextion display then communicates with your microcontroller using serial communication at a 9600 baud rate.

The Nextion Intelligent NX8048P050-011C 5.0" Capacitive Touchscreen Display is so simple to interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and you won't believe it will work even with basic 8051 microcontroller basically it will work with with any board or Microcontroller that has UART port.

Nextion Display is a Human Machine Interface (HMI) solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.

You can develop the HMI GUI project via the free latest Nextion Editor software ver 0.58 or above, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce your HMI project development workloads.

Features of NX8048P050-011C Resistive Touch Screen Display

  • 5” LCD-TFT HMI display module
  • 840 x 480 screen resolution
  • RGB 65K true-to-life colours
  • Capacitive touch panel
  • 300 nit Brightness
  • Onboard 200MHz MCU
  • 512 KB of SRAM
  • 128 MB of Flash memory
  • 1024 Byte EEPROM
  • XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
  • 1.25T-2-2A Audio port for external speaker connection
  • 8 Digital extended GPIO (IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)
  • Built-in RTC support


NX8048P050-011C Certification and Documents


Nextion Technical Support

Package Includes

  • 1 x Nextion Intelligent NX8048P050-011C 5.0" Touchscreen Display
  • 1 x XH2.54 4P wire
  • 1 x power supply test board
