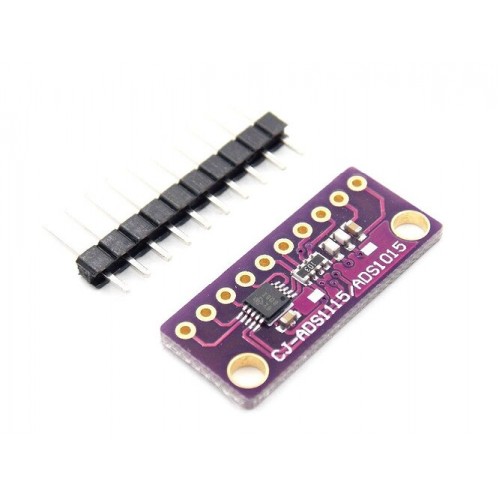

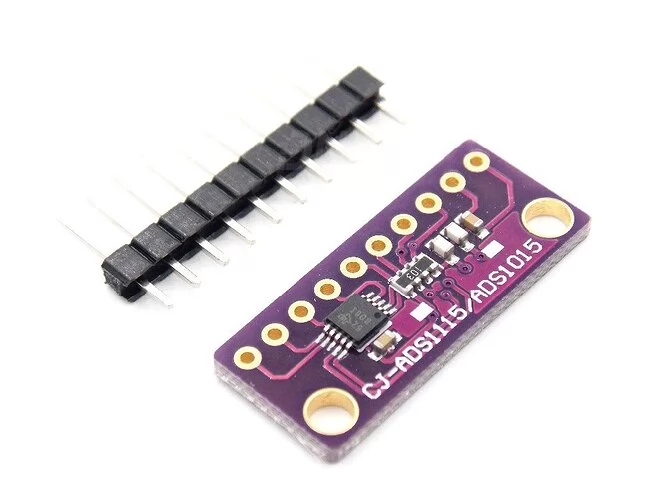

ADS1115 Module (CJ Make)

ADS1115 Module (CJ Make)

ADS1115 Module (CJ Make) for precise analog-to-digital conversion with 16-bit resolution, 4 channels, and I2C interface.

The ADS1115 Module (CJ Make) is an advanced analog-to-digital converter designed for precise measurement of analog signals. It features a 16-bit resolution and supports up to four channels, making it ideal for various electronic projects requiring accurate data acquisition. With its I2C interface and low power consumption, the ADS1115 Module (CJ Make) ensures efficient operation in diverse applications.

This module offers a programmable gain amplifier, allowing users to customize gain settings for optimal performance. It operates within a wide supply range of 2.0V to 5.5V and supports configurable data rates from 8 to 860 samples per second. The ADS1115 Module (CJ Make) is suitable for sensor data acquisition, battery monitoring, and medical instruments, ensuring reliable and precise measurements.

Whether you are working on industrial process control or portable instrumentation, the ADS1115 Module (CJ Make) delivers exceptional performance. Explore our collection of ADC and DAC Modules at DNA solutions, and enhance your projects with reliable electronic components.

Discover the precision of ADC and DAC Modules with DNA solutions. The CJ Make offers reliable performance in analog-to-digital conversion. Check other ADC and DAC Modules that we have in stock.

At DNA, we understand the needs of Indian electronics buyers. If you cannot find specific parts, reach out to us. We can import them if necessary and support both retail and bulk orders. Explore related items like HMI Display, Hongfa Relay, and more. Contact Us.

Features of ADS1115 Module (CJ Make)

• High Precision
• Programmable Gain Amplifier
• Four Channels
• I2C Interface
• Low Power Consumption
• Wide Supply Range
• Configurable Data Rate

Specification of ADS1115 Module (CJ Make)

• ADC Resolution: 16-bit
• Input Channels: 4 single-ended or 2 differential
• Programmable Gain Amplifier: Gains of 2/3, 1, 2, 4, 8, 16
• Operating Voltage: 2.0V to 5.5V
• I2C Address: 0x48, 0x49, 0x4A, or 0x4B (configurable)
• Data Rate: Programmable from 8 to 860 samples per second (SPS)
• Input Voltage Range: Differential ±0.256V to ±6.144V
• Current Consumption: Active mode: Typically 150µA
• Power-down mode: Typically 0.5µA
• Temperature Range: -40°C to +125°C

Applications of ADS1115 Module (CJ Make)

• Sensor data acquisition
• Battery monitoring
• Industrial process control
• Portable instrumentation
• Data loggers
• Medical instruments

Related Links for ADS1115 Module (CJ Make)

• Other Products from ADC and DAC Modules Category

Package Includes

• 1 X ADS1115 Module (CJ Make)
