5S Lithium Battery Charger BMS HX-5S-15A Module

18650 Lithium Battery Charger BMS Protection Board HX-5S-15A Module

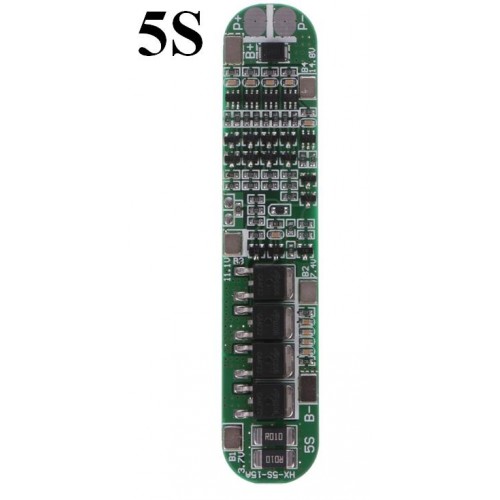

This board is 5 string 3.7V/4.2V lithium battery protection board High current protection board, continuous 15A current Protection board with overcharge protection, over-discharge protection, over-current protection, short circuit protection.

B+ B-is the abbreviation of battery, which is the positive and negative pole of the battery.

P+ P- is the abbreviation of PACK+ PACK-, that is, the output of positive and negative poles

Specifications Of 18650 Lithium Battery Charger BMS Protection Board HX-5S-15A Module

Discharge:

• Continuous discharge current : 15A(max)

• Instantaneous discharge current : 25A

Charge:

• Charge voltage : 21V

• Charging current : 15A(max)

Overcharge Protect:

• Over-charge detect : 4.28±0.05V

• Protect delay : 0.5s

• Over-charge release : 4.28±0.05V

Over-discharge Protect :

• Over-discharge detect : 2.55±0.08V

• Over-discharge detect delay : 0.1s

• Release voltage : 2.9±0.1V

Short-circuit Protect :

• Protect condition : Cut load

• Detect delay : 250uS

• Release condition : Cut load

Over-current Protect :

• Detect voltage : 150mV

• Detect delay : 9MS

• Current detect : 30±3A

• Release condition : Cut load

• Inner Resistance : ≤20mΩ

Self-consumption :

• Working current : ≤30uA

• Sleep current : (when over-charge)≤10uA

• Working Temperature Range : -30-+80
