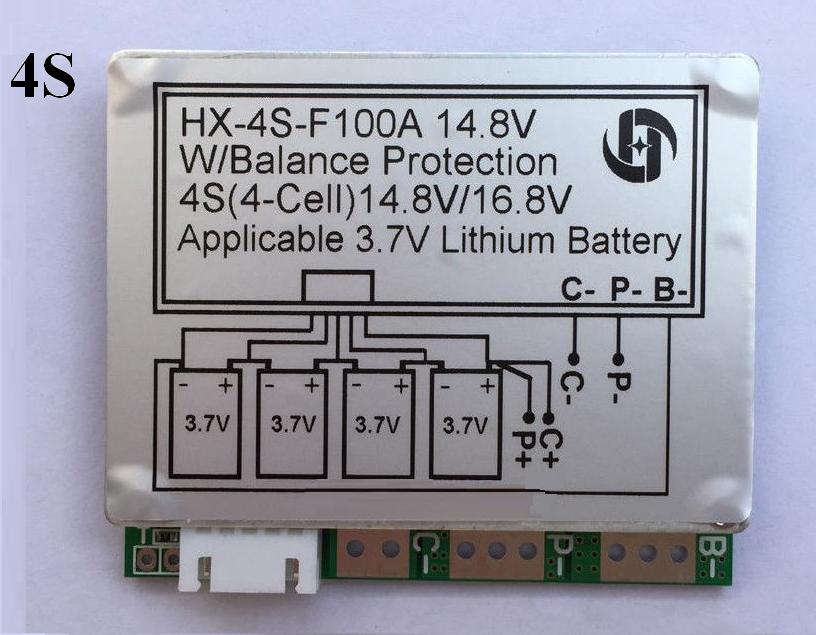

4S Li-Ion BMS 14.8 Volt 100 Amp HX-4S-F100A Module


Write a review | 1 reviews

  • Stock: 3

    Availability: InStock priceValidUntil: 2026-06-16

  • Brand: Generic
  • SKU: 1963 | DAB394

Availability: InStock priceValidUntil: 2026-06-16

  • Rs. 784.70 (inc GST)
    Rs.665.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Discharge charge controller 4 Li-Ion 18650 14.8V 100A HX-4S-F100A Module

4S Li-Ion BMS 14.8 Volt 100 Amp HX-4S-F100A Module

Specifications Of Discharge charge controller 4 Li-Ion 18650 14.8V 100A HX-4S-F100A Module

Discharge

  • Discharge current : 100A

  • Instant discharge current : 120 A

Charging

  • Charging voltage : 16.8 V

  • Charging current : 10A

Overcharge protection

  • Overvoltage control : 4.28 ± 0.025 V

  • Delay protection : 0.5S

  • Overload discharge : 4.08 ± 0.1 V

Charge balance

  • Charge balance control : 4.2V

  • Overload discharge : 4.2V

  • Balanced current charge : 45mA

Discharge protection

  • Over discharge control : 2.9 ± 0.1V

  • Delay : 0.1S

  • Overload discharge : 3.0 ± 0.1    V

Overcurrent protection

  • Overcurrent control : 150mV

  • Delay : 9mS

  • High current protection : 75A

  • Overcurrent Protection Conditions : Load disconnection

Short circuit protection

  • Short circuit conditions : External load

  • Delay : 250uS

  • Short circuit protection conditions : Load disconnection

Internal resistance

  • Main circuit resistance : ≤45mΩ

Power consumption

  • Operating current : ≤8uA

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
