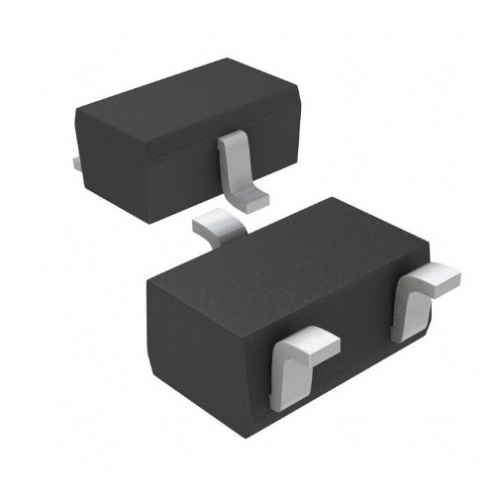

2N2222 NPN Transistor SMD

2N2222 NPN Bipolar Transistor SMD

2N2222 NPN Bipolar Transistor SMD with 800 mA current, 40 V voltage, and fast switching speed.

The 2N2222 NPN Bipolar Transistor SMD is a versatile component for electronic projects. It handles up to 800 mA collector current and operates at a maximum of 40 V collector-emitter voltage. This transistor features a moderate current gain of 75-300 and a transition frequency of 250 MHz, making it suitable for both high-speed switching and low-to-moderate amplification tasks. The robust TO-92 package allows for easy integration into various circuits.

Common applications of the 2N2222 NPN Bipolar Transistor SMD include relay driving, LED control, and audio stage amplification. Its reliability makes it ideal for both consumer and industrial electronics. This component is widely used in educational settings, providing students with hands-on experience in circuit design and implementation.

Explore the benefits of the 2N2222 NPN Bipolar Transistor SMD for your next project. Its combination of performance, availability, and cost-effectiveness makes it a staple for electronic enthusiasts in India. Check our collection for more options.

At DNA, we offer a wide range of reliable Diodes & Transistors. Explore the trusted 2N2222 NPN Bipolar Transistor SMD from our collection. Check other Diodes & Transistors that we have in stock.

If you're searching for specific electronic components in India, reach out to us. We can help you find parts like SMPS, LCD, Microcontroller, IGBT, and Connectors. We also support retail and bulk orders, and can import components if needed. Contact Us

Features of 2N2222 NPN Bipolar Transistor SMD

• High Collector Current: Can handle up to 800 mA continuous collector current
• Moderate Voltage Ratings: Collector-Emitter voltage rating of 40 V
• Fast Switching Speed: Transition frequency (fT) up to 250 MHz
• Good Current Gain: DC current gain (hFE) typically ranges from 75 to 300
• Robust TO-92 Package: Easy to use through-hole package
• Widely Available and Cost-Effective: Popular BJT worldwide

Specification of 2N2222 NPN Bipolar Transistor SMD

• Collector-Base Voltage(V): 75
• Collector-Emitter Volt(V): 40
• Emitter-Base Voltage (V): 6
• Collector Current (Ic-mA): 600
• Junction Temperature (°C): -55 to +150

Applications of 2N2222 NPN Bipolar Transistor SMD

• Switching Loads
• Signal Amplification
• Digital Logic Circuits
• Pulse and Oscillator Circuits

Package Includes

• 1 X 2N2222 NPN Transistor SMD
