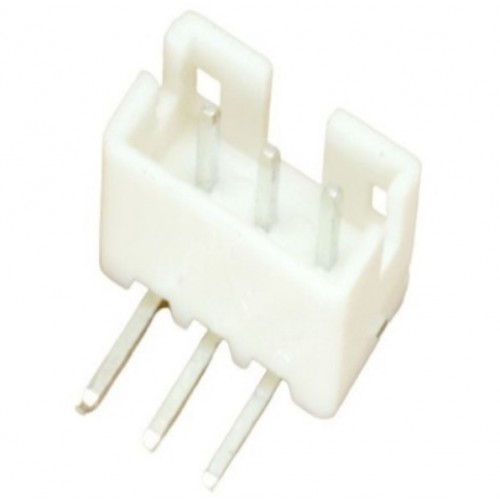

3 Pin 2.5mm JST PH Right Angle Male Connector

3 Pin 2.5mm JST PH Right Angle Male Connector

The 3-Pin 2.5mm JST PH Right Angle Male Connector is a compact and durable wire-to-board connector ideal for low-power and signal transmission applications. With a 2.5mm pitch and right-angle orientation, it is specifically designed for horizontal PCB mounting in space-constrained designs. The connector supports secure mating with female counterparts, commonly used in electronics, robotics, and consumer devices.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• Right-angle design for low-profile applications

• Secure locking mechanism with mating connector

• Suitable for signal and low-current power transmission

• Durable tin-plated contacts for corrosion resistance

• Reliable fit and resistance to vibration and shock

Specifications of 3 Pin 2.5mm JST PH Right Angle Male Connector

• Connector Series: JST PH Series

• Number of Pins: 3

• Pin Pitch: 2.5 mm

• Mounting Type: Through-Hole, Right Angle

• Rated Current: Up to 3A

• Rated Voltage: 250V AC/DC

• Operating Temperature: -25°C to +85°C

• Material: Tin-plated Phosphor Bronze Contacts

Applications of 3 Pin 2.5mm JST PH Right Angle Male Connector

• DIY Electronics Projects

• RC Vehicles and Drones

• LED Lighting Systems

• Small Consumer Devices

• Embedded Systems

• Sensor Modules

Package Includes

      1 x 3 Pin 2.5mm JST PH Right Angle Male Connector
