Product Images are shown for illustrative purposes only and may differ from actual product.

315Mhz MU3100 RF Transmitter Receiver Module

Write a review | 0 reviews

Stock: 15
Availability: InStock priceValidUntil: 2026-02-28
Brand: Generic
SKU: 3618 | DAA871

Rs. 178.18 (inc GST)
Rs.151.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

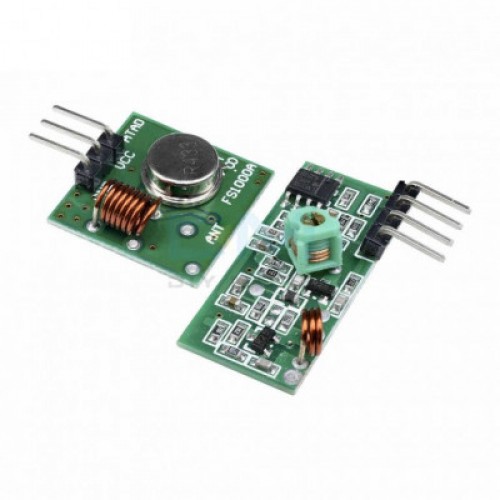

315Mhz MU3100 Module

315Mhz MU3100 Module

This is RF Transmitter Receiver Module 315MHz Wireless Link Kit For Arduino.

This Radio Transmitter & Receiver pair is perfectly matched to allow you to control items from a distance up to 500 feet wirelessly Connect the transmitter to your Arduino, Raspberry Pi or other microcontroller and the receiver to whatever you’d like to control.

This wireless transmitter and receiver pair operate at 315Mhz. They can easily fit into a breadboard and work well with microcontrollers to create a very simple wireless Receiving frequency (MHz)ss data link. Since these are only transmitters, they will only work communicating data one-way, you would need two pairs (of different frequencies) to act as a transmitter/receiver pair.

Both the transmitter and receiver are in tune to the same Radio Frequency so that when the transmitter emits a signal, the receiver will hear it wirelessly. Great for easy and simple wireless control! Arduino & Raspberry Pi 2 / B / B+ / A+ Compatible!

DNA solutions, Nashik has various types of Communication Modules. Check out our complete collection of Communication Modules.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 315Mhz MU3100 Module

Transmitter module parameters

Launch Distance: 20-200 meters (different voltage, different results).

Operating mode: AM.

Transfer rate: 4KB/S.

Transmitting power: 10mW.

Operating voltage: 3.5-12V.

Dimensions: 19 x 19 mm.

Transmitting frequency: 315Mhz.

Pinout from left a+ right: (DATA; VCC; GND).

An external antenna: 25cm ordinary multi-core or single-core line

Receiver module parameters

Product Model: XY-MK-5V.

Receiving frequency: 315MHz.

Receiver sensitivity: -105 dB.

Size: 30 x 14 x 7 mm.

Operating voltage: DC 5V.

Quiescent Current: 4mA.

Package Includes

1 x 315Mhz MU3100 Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
