Product Images are shown for illustrative purposes only and may differ from actual product.

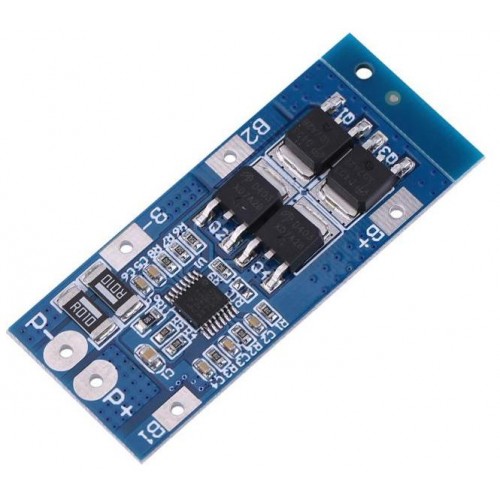

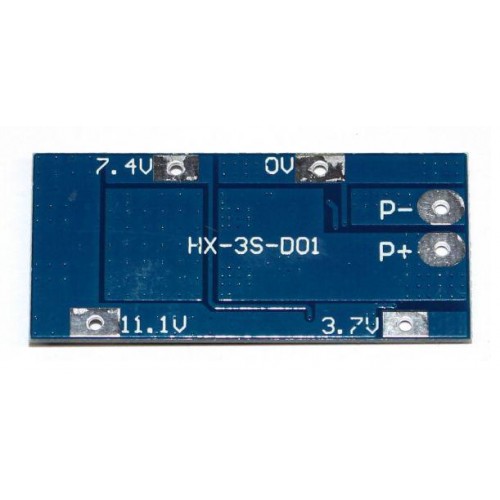

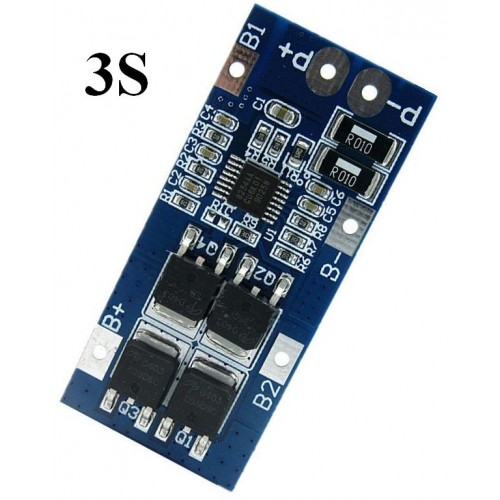

3S Lithium BMS HX-3S-D01 3 Series 11.1 Volt Module


Write a review | 3 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-08-15

  • Brand: Generic
  • SKU: 1956 | DAB741

Availability: NotInStock priceValidUntil: 2026-08-15

  • Rs. 309.75 (inc GST)
    Rs.262.50 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Lithium Battery Protection Board HX-3S-D01 3 Series 11.1V

3S Lithium BMS HX-3S-D01 3 Series 11.1 Volt Module

This product is 12.6V to 13V charge voltage, quiescent current is less than 50uA PCB. Protection circuit board is the core of the battery pack, because it can prevent the battery pack from exploding, fire and damage. It also protects the battery pack from over-charging, over-discharging, over-current and short-circuiting. With this PCB, you can certainly extend battery life.

Features of Lithium Battery Protection Board HX-3S-D01 3 Series 11.1V

Charging voltage 12.6V to 13V, quiescent current is less than 50uA, low power consumption A variety of protection features, including overcharge protection, over discharge protection, short circuit protection and over current protection For 11.1V lithium battery pack Can be used to avoid explosion, fire and damage to your battery pack for safe use Helps to extend battery life.

Specifications of Lithium Battery Protection Board HX-3S-D01 3 Series 11.1V

  • Over-voltage range : 4.25-4.35v ± 0.05v
  • Over discharge voltage range : 2.3-3.0v ± 0.05v
  • Maximum operating current : 15A
  • Maximum transient current : 15-20A
  • Quiescent current : <50uA
  • Resistance : <150mΩ
  • Charging voltage : 12.6v - 13V
  • Operating temperature : -40 ~ +50 ℃
  • Storage conditions : -40 ~ +80 ℃
  • Effective life : > 30000h
  • Short-circuit protection : Yes, delayed self-recovery

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
