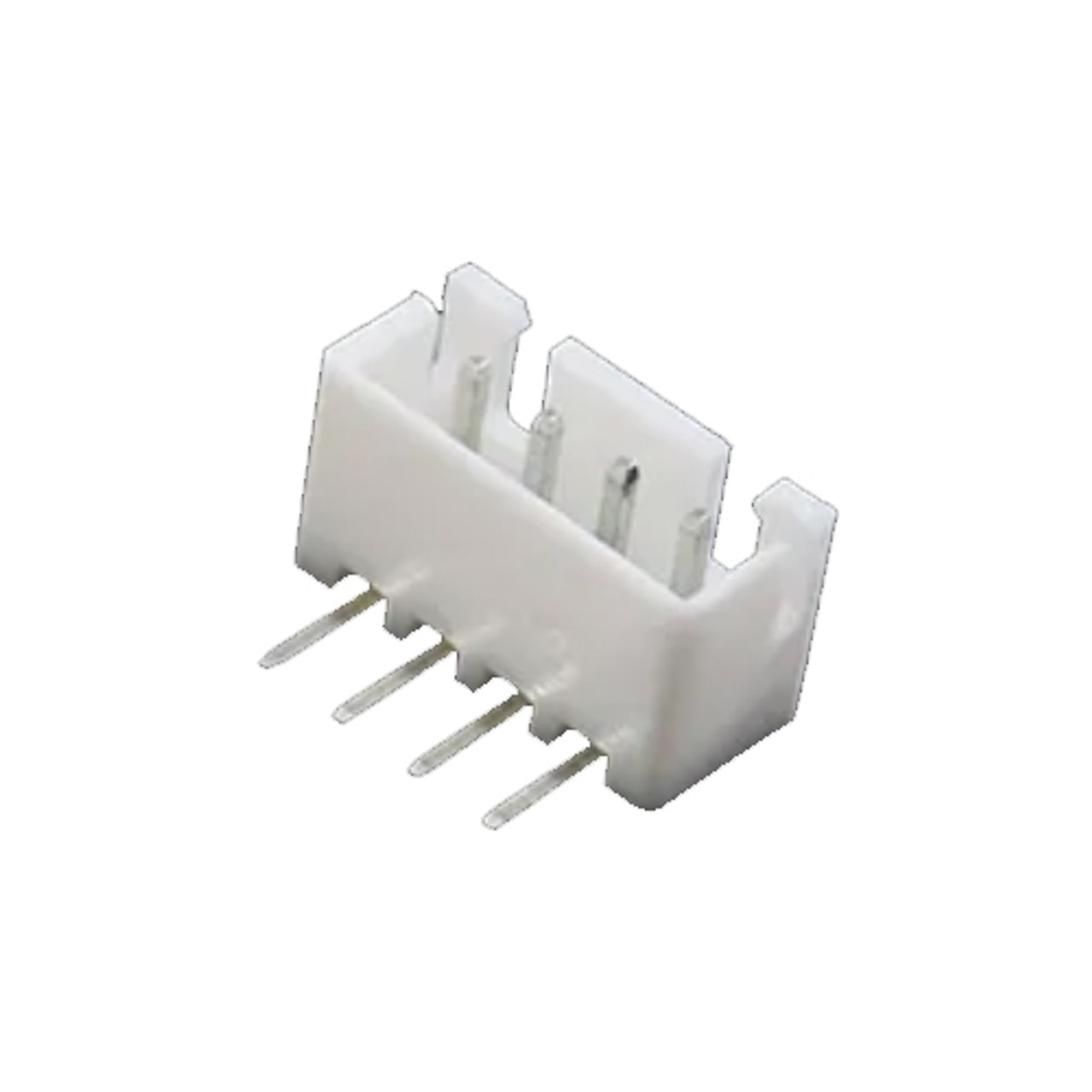

4 Pin 2.5mm JST PH Right Angle Male Connector

4 Pin 2.5mm JST PH Right Angle Male Connector

The 4-Pin 2.5mm JST PH Right Angle Male Connector is a compact and reliable solution for wire-to-board connections, especially in applications where space is limited. Its right-angle design facilitates horizontal mounting on PCBs, making it ideal for various electronic projects.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• Compact Design: With a 2.5mm pitch, this connector is ideal for applications requiring space-saving solutions.

• Right-Angle Configuration: The side-entry, right-angle design allows for horizontal mounting on PCBs, facilitating streamlined layouts.

• Secure Connection: Designed to provide a reliable and stable connection, minimizing the risk of disconnection due to vibrations or movement.

• High Durability: Constructed with quality materials to ensure longevity and consistent performance.

• Versatility: Commonly used in battery connections, LED lighting systems, small electronic devices, and prototyping boards.

Specifications of 4 Pin 2.5mm JST PH Right Angle Male Connector

• Connector Type: JST PH Series

• Number of Pins: 4

• Pitch: 2.5 mm

• Mounting Type: Through-Hole, Right Angle

• Current Rating: Up to 3 A

• Contact Resistance: 20 mΩ

• Material: Phosphor Bronze Contacts with Tin Plating

• Housing Material: Nylon 66, UL94V-0

Applications of 4 Pin 2.5mm JST PH Right Angle Male Connector

• Battery Connections in RC Models and Drones

• Consumer Electronics

• DIY Electronics and Prototyping

• Automotive Electronics

• Medical Devices

Package Includes

      1 x 4 Pin 2.5mm JST PH Right Angle Male Connector
