4 Pin Wire To Wire SM Female Connector (2517)

4 Pin Wire To Wire SM Female Connector (2517)

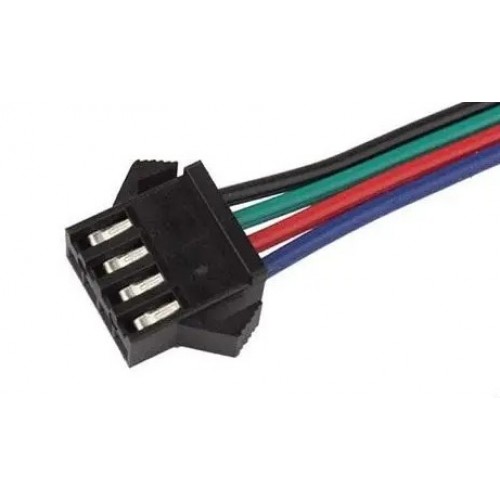

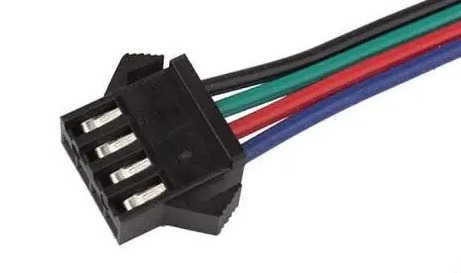

The 4 Pin Wire-to-Wire SM Female Connector (2517) is a female connector that pairs with a compatible male counterpart to establish an electrical connection. It is often used for interconnecting cables, where each pin on the connector corresponds to a different wire, allowing the transfer of electrical signals or power between different parts of a system. The connector is designed for easy assembly and secure, reliable connections.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• 4 Pin Configuration: The connector has 4 distinct pins for wiring, allowing for 4 electrical connections, commonly used for signals or power distribution

• Wire-to-Wire Connection: This type of connector is designed to join two wire harnesses or cables, establishing an electrical link between them

• SM (Surface Mount) Design: Designed for use in surface mount applications, which is ideal for automatic assembly processes and saving board space

• Durable Material Construction: Typically constructed from high-quality materials such as thermoplastic housings and metal contacts for durability and longevity

• Low Insertion Force: Ensures easy and secure mating of connectors while reducing the chance of damaging pins or connectors

Specifications of 4 Pin Wire To Wire SM Female Connector (2517)

• Connector Type: 4 Pin Wire-to-Wire Female Connector

• Pitch: Common pitch for 4-pin connectors in the 2517 series is around 2.5mm, but this may vary

• Current Rating: Typically rated for 3A to 5A depending on the materials and design

• Voltage Rating: Typically rated for 50V to 250V depending on the specific variant and application requirements

• Operating Temperature: Typically ranges from -40°C to +105°C depending on the specific application requirements

• Mounting Type: Surface Mount (SM) for automated assembly

• Locking Mechanism: Some versions may include a lock tab or latch to secure the connector when mated

Applications of 4 Pin Wire To Wire SM Female Connector (2517)

• Automotive

• Robotics

• Communication Systems

• Home Appliances

• Consumer Electronics

Package Includes

      1 x 4 Pin Wire To Wire SM Female Connector (2517)
