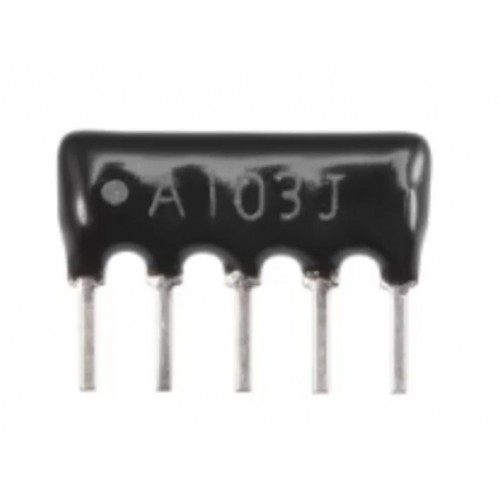

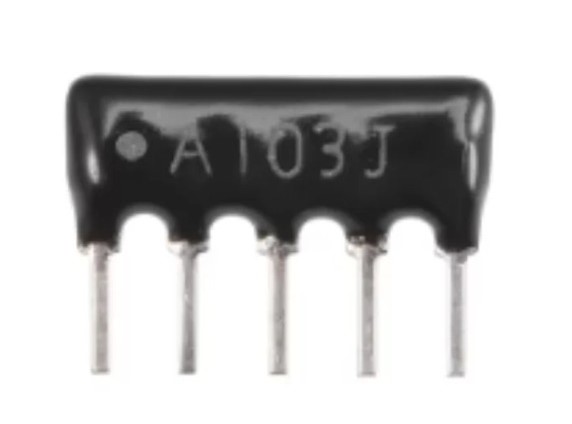

5 Pin SIP A103J DIP Network Resistor

5 Pin SIP A103J DIP Network Resistor

The A103J is a 5-pin Single Inline Package (SIP) resistor network array consisting of four 10kΩ resistors with one common terminal, housed in a DIP (Dual In-line Package) SIP form factor. It is designed for through-hole PCB mounting and simplifies circuit design by reducing component count and improving layout efficiency. This component is widely used for pull-up or pull-down resistors, signal line biasing, or termination in digital and analog circuits.

DNA solutions, Nashik has various types of Resistor's. Check out our complete collection of Resistor's.

• 4 × 10kΩ resistors in a single compact SIP package

• 5-pin configuration with common bus (pin 1)

• ±5% tolerance for general-purpose applications

• Space-saving and easy to mount on through-hole PCBs

• Cost-effective for reducing component count

Specifications of 5 Pin SIP A103J DIP Network Resistor

• Resistance: 10kΩ

• Tolerance: ±5%

• Package Type: SIP

• Pin Count: 5 pins

• Configuration: 4 resistors with common pin

• Mounting Type: Through-hole

Applications of 5 Pin SIP A103J DIP Network Resistor

• Pull-up/pull-down resistors for digital inputs

• Signal termination and biasing

• Voltage dividers and current limiting

• LED arrays

Package Includes

      1 x 5 Pin SIP A103J DIP Network Resistor
