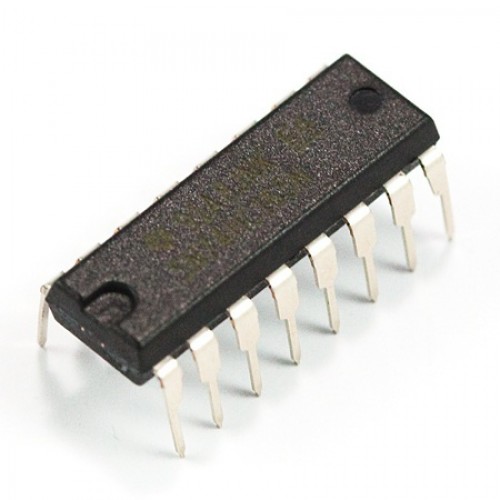

74HC4052 Multiplexer / Demultiplexer

Name: 74HC4052 Multiplexer / Demultiplexer
SKU: DAA239
Price: 20.06 INR
Availability: OutOfStock
Rating: 3.67 (3 reviews)

Write a review | 3 reviews

Stock: Out Of Stock

SKU: 1050 | DAA239

Rs. 20.06 (inc GST)
Rs.17.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

74HC4052 Dual 4-Channel Analog Multiplexer / Demultiplexer

The 74HC4052; 74HCT4052 is a dual single-pole quad-throw analog switch (2x SP4T) suitable for use in analog or digital 4:1 multiplexer/demultiplexer applications.

Each switch features four independent inputs/outputs (nY0, nY1, nY2 and nY3) and a common input/output (nZ). A digital enable input (E) and two digital select inputs (S0 and S1) are common to both switches. When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Features of 74HC4052

Wide analog input voltage range from -5 V to +5 V
Low ON resistance :

- 80 ohm (typical) at VCC - VEE = 4.5 V

- 70 ohm (typical) at VCC - VEE = 6.0 V
- 60 ohm (typical) at VCC - VEE = 9.0 V
- For 74HCT4052 : TTL level
- MM JESD22-A115-A exceeds 200 V
- CDM JESD22-C101E exceeds 1000 V
Specified from -40 oC to +85 oC and -40 oC to +125 oC

Logic level translation : to enable 5 V logic to communicate with -5 V analog signals
Typical ‘break before make’ built-in
Complies with JEDEC standard no. 7AInput levels:
