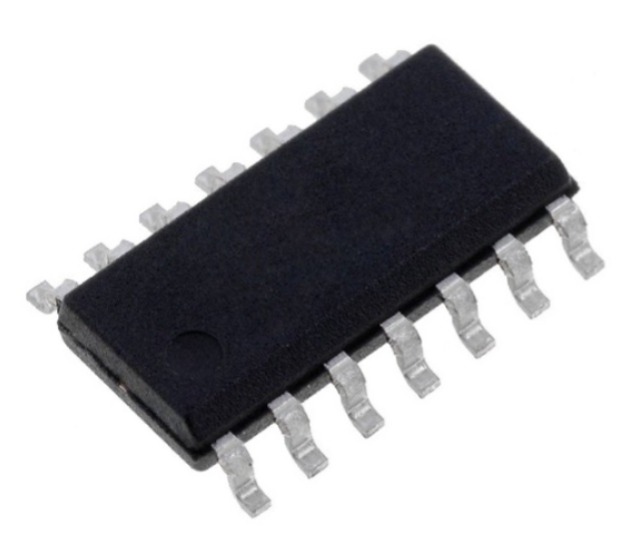

74HC04 High Speed CMOS Hex Inverter IC(SOIC 14)

74HC04 High Speed CMOS Hex Inverter IC

74HC04 Hex Inverter IC, 6 independent inverters, operates at 5V, supports -40°C to +85°C.

The 74HC04 High Speed CMOS Hex Inverter IC is designed for reliable performance in various electronic applications. This IC includes six independent gates that perform logical inversion, making it suitable for use in digital circuits. Operating at a voltage of 5V, it features a wide input voltage range and supports a fanout of up to 10 LSTTL loads.

With a temperature range of -40°C to +85°C, the 74HC04 High Speed CMOS Hex Inverter IC is ideal for both commercial and industrial applications. This IC provides buffered inputs for enhanced performance, ensuring that your designs remain robust. Whether you are designing a complex system or a simple device, this hex inverter meets essential requirements for logic inversion.

Explore the capabilities of the 74HC04 High Speed CMOS Hex Inverter IC for your next project. Its versatility and efficiency make it a valuable component for engineers and hobbyists alike. Incorporate it into your designs for reliable logic operations.

Explore the reliability of 7400 Series IC's at DNA, your trusted retailer. The 74HC04 High Speed CMOS Hex Inverter IC is a key component in this category. Check other 7400 Series IC's that we have in stock.

If you need specific electronic components, reach out to us at DNA. We can help you find hard-to-locate parts or even import them for you. Our support extends to retail and bulk orders. Consider related items like Digital IC, Microcontroller, SMPS, Sensor, Inductor, and LCD. Contact Us.

Features of 74HC04 High Speed CMOS Hex Inverter IC

• Buffered inputs
• Wide operating voltage range: 2 V to 6 V
• Wide operating temperature range: –40°C to +85°C
• Supports fanout up to 10 LSTTL loads

Specification of 74HC04 High Speed CMOS Hex Inverter IC

• Series: SN74HC04
• Function: Hex
• Product Type: Inverters
• Number of Circuits: 6 Circuit
• Logic Family: HC
• Logic Type: CMOS
• Minimum Operating Temperature: -40°C
• Maximum Operating Temperature: +85°C

Applications of 74HC04 High Speed CMOS Hex Inverter IC

• Digital signal processing
• Logic inversion in circuits
• Signal conditioning
• Level shifting
• General-purpose logic applications

Related Links for 74HC04 High Speed CMOS Hex Inverter IC

• Other Products from 7400 Series IC's Category

Package Includes

• 1 X 74HC04 High Speed CMOS Hex Inverter IC(SOIC 14)
